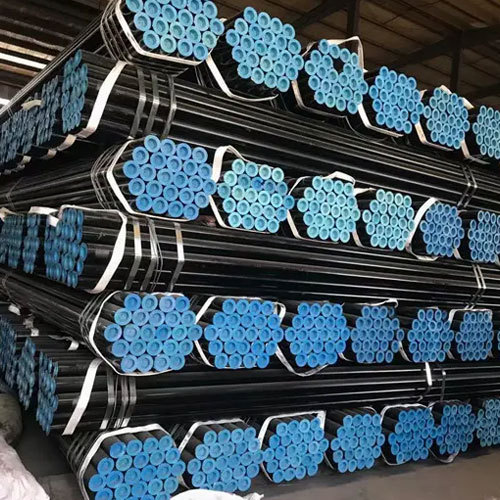

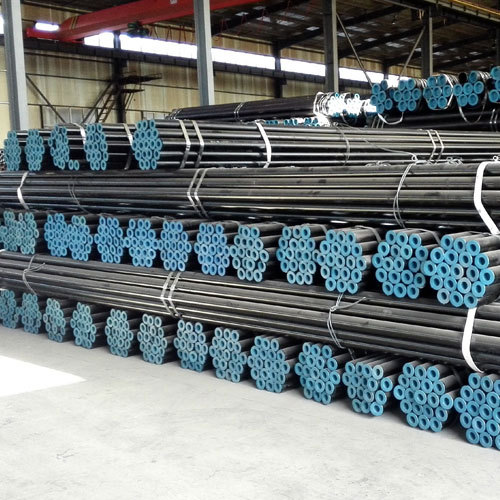

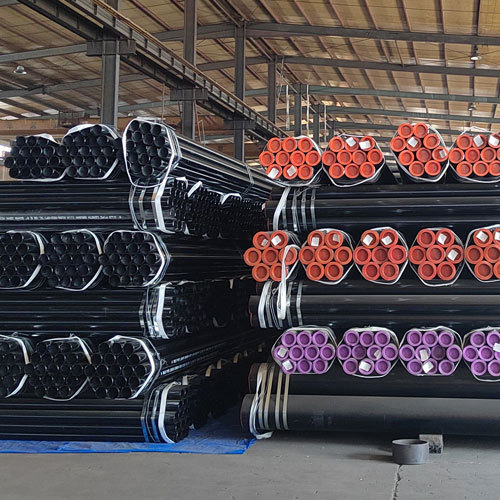

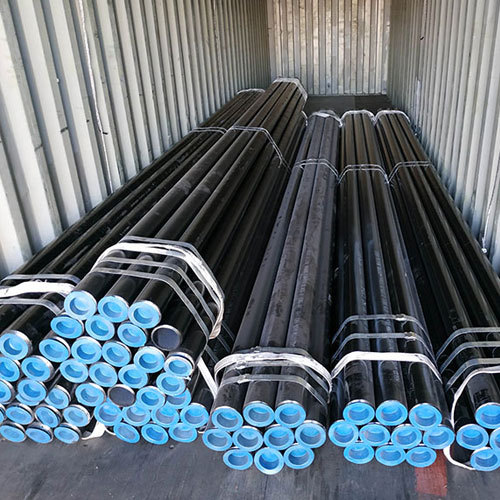

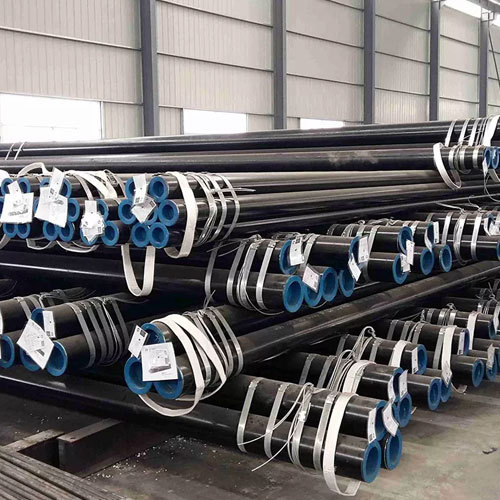

Cold Drawn Seamless Pipe

Product Description

Product Description:

 Seamless steel pipe with hollow section, a large number of used for conveying fluid pipeline, such as conveying oil, natural gas, gas, water and some solid material pipeline.  Compared to
the steel pipe and round steel solid steel bending torsional strength phase at thesame time, the weight is lighter, is a kind of economic cross section steel, widely used in the manufacture of
structural and mechanical parts, such as petroleum drill pipe, auto transmission shaft, bicycle frame and construction of steel scaffolding is used with steel pipe manufacturing
annular parts, such as can improve material utilization, simplifying the manufacturing process, material saving and processing time,  Has been widely used in steel pipe manufacturing .
Specification:

ASTM Standard for seamless steel pipe


Executive Standard	Grade / Material	Product Name
ASTM A53	A, B	Black and Hot-Dipped Zinc-Coated Steel Pipes Welded and Seamless
ASTM A106	A, B	Seamless Carbon Steel for High Temperature Service
ASTM A179	Low Carbon Steel	Seamless Cold-Drawn Low-Carbon Steel Heat Exchanger and Condenser Tubes
ASTM A192	Low Carbon Steel	Seamless Carbon Steel Boiler Tubes for High Pressure
ASTM A210	A1, C	Seamless Medium-Carbon and Alloy Steel Boiler and Super heater Tubes
ASTM A213	T5, T11, T12, T22 TP 347H	Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat- Exchanger Tubes
ASTM A312	TP304/304L, TP316/316L	Seamless Steel Pipe for Stainless Materials
ASTM A333	Gr.6	Seamless and Welded Steel Pipe for Low-Temperature Service
ASTM A335	P9, P11, P22	Seamless Ferritic Alloy Steel Pipe for High-Temperature Service
ASTM A519	4130,4140	Seamless Carbon and Alloy Steel for Mechanical Tubing
ASTM A789		Seamless Ferritic/Austenitic Stainless Steel Tubing for General Service

API Standard for seamless steel pipe

Executive Standard	Grade / Material	Product Name
API Spec 5CT	J55, K55, N80, L80,C90, C95, T95, P110, M65	Specification for Casing and Tubing
API Spec 5L PSL1 / PSL2	A,B X42, X46, X52, X56, X60, X65,. X70	Specification for Line Pipe

EN/DIN Standard for seamless steel pipe

Executive Standard	Grade / Material	Product Name
DN 17175/EN10216-2	ST35, ST45, ST52, 13CrMo44	Seamless Steel Tube for Elevated Temperature
DIN 2391/EN10305-1	St35, St45, St52	Cold Drawn Seamless Precision Pipe
DIN 1629/EN10216-1	St37, St45, St52	Seamless Circular unalloyed Steel Tubes Subject to Special Requirements



Product	Seamless Steel Pipe For Exploration & Production
OD	13.72 mm - 914.4 mm
WT	1.65 mm - 22 mm
Length	0.5 m - 20 m
Standard	API 5L PSL1 /PSL2
Material	GR.B/X42/46/X52/56/X60/65/X70/80
Usage	Chilled Water Pipe, Drinking water Pipe, W aste Water Pipe, Structural Tube, Fluid Pipe, Boiler Pipe, Oil and Gas Transportation Pipe, Mechanical Structure Pipe

Chemical composition and mechanical properties:

API 5L PSL1
Standard	Grade	Chemical Components				Tensile STrength(min)	Yield Strength(min)
		C	Mn	P	S	Mpa	Mpa
API 5L	A	0.22	0.90	0.030	0.030	331	207
PSL1	B	0.28	1.20	0.030	0.030	414	241
	X42	0.28	1.30	0.030	0.030	414	290
	X46	0.28	1.40	0.030	0.030	434	317
	X52	0.28	1.40	0.030	0.030	455	359
	X56	0.28	1.40	0.030	0.030	490	386
	X60	0.28	1.40	0.030	0.030	517	414
	X65	0.28	1.40	0.030	0.030	531	448
	X70	0.28	1.40	0.030	0.030	565	483
API 5L PSL2
Standard	Grade	Chemical Components				Tensile STrength(min)	Yield Strength(min)
		C	Mn	P	S	Mpa	Mpa
API 5L	B	0.24	1.20	0.025	0.015	414	241
PSL2	X42	0.24	1.30	0.025	0.015	414	290
	X46	0.24	1.40	0.025	0.015	434	317
	X52	0.24	1.40	0.025	0.015	455	359
	X56	0.24	1.40	0.025	0.015	490	386
	X60	0.24	1.40	0.025	0.015	517	414
	X65	0.24	1.40	0.025	0.015	531	448
	X70	0.24	1.40	0.025	0.015	565	483
	X80	0.24	1.40	0.025	0.015	621	552

Types of galvanized steel pipe

STANDARDS	PRODUCTS	RANGES
IS:1239 (Part-I)	Mild Steel Tubes, Tubular	15mm NB - 150mm NB
IS:1161	Mild Steel Tubes for Structural purpose	15mm NB - 200mm NB
IS:3601	Mild Steel tubes for Mechanical & General Eng. purpose	20mm x 0.80mm to 165.10 x 7.00 mm
IS:3589	ERW Pipes for water Gas & Sewage	168.3 x 4.00 mm to 219.1 x 7.00mm
IS:9295	Steel Tubes for Idlers for Belt conveyors	63.5 x 4.00 mm to 219.1 x 7.0 mm
IS:4270	Steel Tubes for Water Wells	114.3 x 5.00mm to 219.1mm x 7.1mm
IS:7138	Steel Tubes for furniture	20.0 x .60mm to 60.0 x 2.0mm
IS:4923	Hollow Steel sections for structural purpose	12.5 x 12.5 x 0.80 to 150 x 150 x 6.0mm 10 x 20 x 0.80mm to 150 x 200 x 6.0mm
IS:3074	Steel Tubes for Automobile purpose	19.7 x 1.00mm to 101.6 x 6.0mm
BS:1387	Screwed & Socket Steel Tubes & Tubular	½"NB to 6″NB 2.00 mm - 5.40 mm wall thick
BS:3601	Steel Pipes & Tubes for pressure purpose	½"NB to 6″NB 2.00 mm - 7.00 mm wall thickness
BS:6323	Steel tubes for mechanical & general engineering purposes	21.3″ to 219.1mm OD wall thickness-1.60-7.00 mm

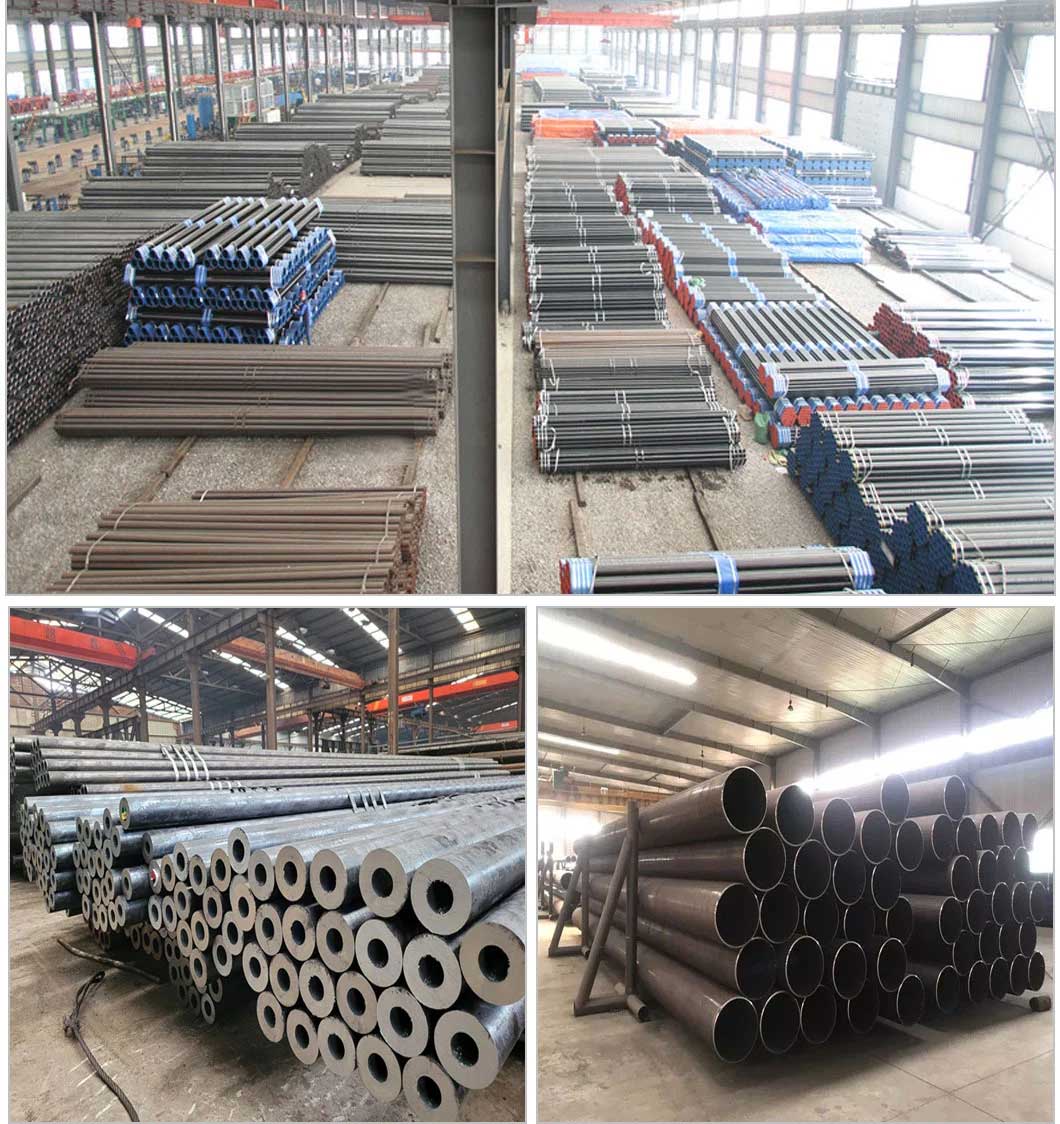

Factory:

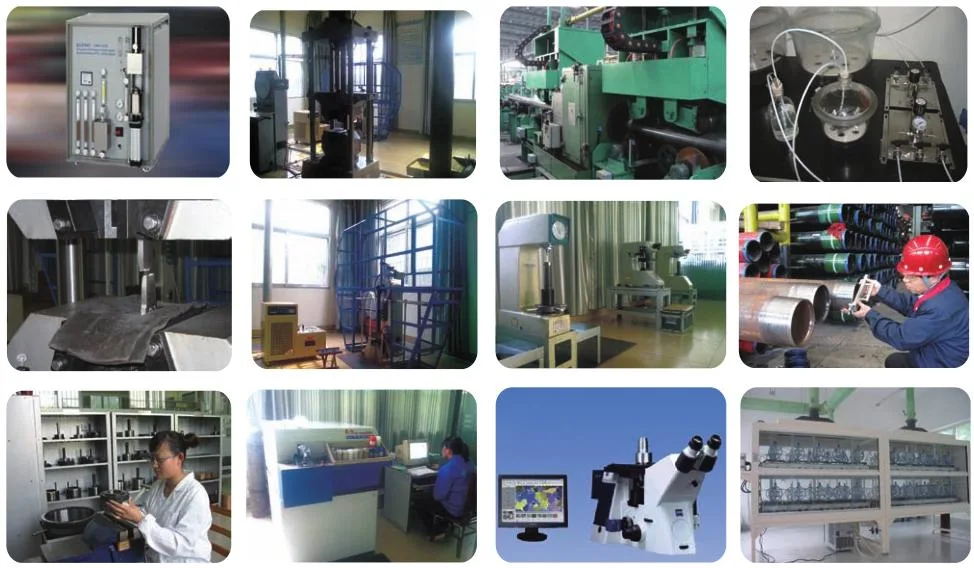

Experimental Equipment:

FAQ

Q1: Can I have a sample order for products?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2: It's my first time to import steel products, can you help me with it?
A: Sure, we have agents to arrange the shipment, we will do it together with you.
Q3: Do you have any MOQ limit for the products order?
A: Low MOQ, 1pcs for sample checking is available.
Q4: How to ensure the quality?
A: Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.
Q5: What are the certifications for your products?
A: We have ISO 9001, CE, MTC, and third parties inspections all available such as SGS, BV, etc.
Q6:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment or based on BL copy or LC at sight.
