Stainless Steel Pipe API 5CT Hot Rolled Casing Pipe/Petroleum Pipe

OCTG: Oil country tubular goods is the classification used for a variety of downhole products

API 5CT C90 Casing Tubing serves to transport both crude oil and natural gas from oil and gas layer to the surface pipeline after drilling is completed. It is able to bear the pressure produced by the exploitation process. After the outer surface is coated with a protective layer, the tubing is marked in accordance with the API 5CT standard and strapped with metal belt.

Our oilfield tubing & API 5CT C90 Casing Tubing can be widely applicable to petroleum, construction, shipbuilding, smelting, aviation, electric power, food, paper, chemical industry, medical equipment, boilers, heat exchangers, metallurgy and so on.

This oilfield tubing can be classified as NUE type and EUE type. You can find here Casing Dimensions & Casing Wall Thickness.

Specifications include 1.9in(48.3mm), 2 3/8in(60.3mm), 2 7/8in(73.03mm), 3 1/2in(88.9mm), 4in(101.6mm), 4 1/2in(114.3mm) etc. The depth of our product for descending the well is basically identical to that of oil casing pipe. Both mechanical property and sealing performance of this tubing are also required to correspond with the oil casing pipe. Petroleum Tubing main steel grade includes J55, N80, C90, P110 and some others. for more details check below Casing And Tubing Tables, Casing Grade Table, & Casing Data Tables.

Group	Grade	Type	Total elongation under load %	Yield strength MPa	Tensile strength min. MPa	Hardness a max.	Specified wall thickness mm	Allowable hardness variation b HRC
min.	max .		HRC	HBW
1	2	3	4	5	6	7	8	9	10	11
1	H40	-	0.5	276	552	414	-	-	-	-
	J55	-	0.5	379	552	517	-	-	-	-
	K55	-	0.5	379	552	655	-	-	-	-
	N80	1	0.5	552	758	689	-	-	-	-
	N80	Q	0.5	552	758	689	-	-	-	-
	R95	-	0.5	655	758	724	-	-	-	-
2	M65	-	0.5	448	586	586	22	235	-	-
	L80	1	0.5	552	655	655	23	241	-	-
	L80	9Cr	0.5	552	655	655	23	241	-	-
	L80	13Cr	0.5	552	655	655	23	241	-	-
	C90	1	0.5	621	724	689	25.4	255	≤ 12.70 12.71 to 19.04 19.05 to 25.39 ≥ 25.40	3.0 4.0 5.0 6.0
	T95	1	0.5	655	758	724	25.4	255	≤ 12.70 12.71 to 19.04 19.05 to 25.39 ≥ 25.40	3.0 4.0 5.0 6.0
	C110	-	0.7	758	828	793	30	286	≤ 12.70 12.71 to 19.04 19.05 to 25.39. ≥ 25.40	3.0 4.0 5.0 6.0
3	P110	-	0.6	758	965	862	-	-	-	-
4	Q125	1	0.65	862	1034	931	b	-	≤ 12.70 12.71 to 19.04 ≥ 19.05	3.0 4.0 5.0

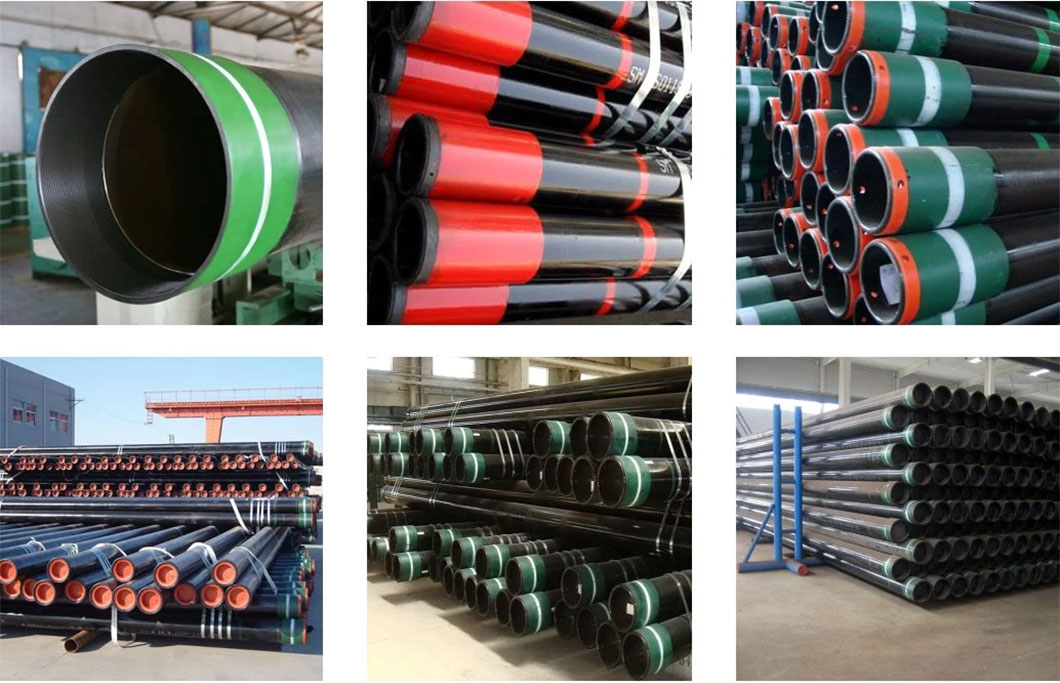

Detailed Photos


Packaging & Shipping


FAQ

Q1:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q2:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q3:What product information do I need to provide?
A:You need to provide the grade, length, width, diameter, thickness, coating and the number of tons you need to purchase.
Q4:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept  third party inspection.
Q5:How do we trust your company?
A:We specialise in steel business for years , headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO certificate, quality can be guaranteed, the most important point is that we ship enough weight as per the order.
