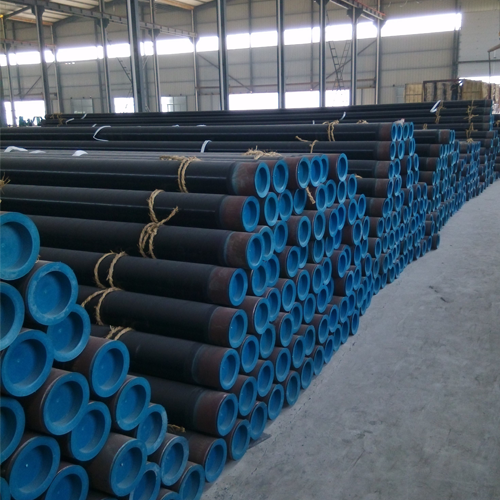

API 5L A25 Carbon Hot-Rolled Seamless Steel Pipe
Product Introduction
API 5L PSL 1 A25 Seamless Steel Pipe, mainly used in gas, water, and oil in both the oil and natural gas industries.
Notes:
Stainless Steel Grades - A, A25, B
OD Tolerances, on the pipe body: ± 0.75%
WT Tolerances:
NS = 23/8; 27/8 inch: +20% -12%
NS = 31/2; 4 inch: +15% - 12.5%
Stainless Steel pipes can be delivered with monogram (license no. 5l-0287).
Nominal length: 20 - 40 ft (6 - 12m).
Pipes are delivered in "as after rolling" condition with beveled ends of 30° angle.
Production Size: OD≥3.40mm, 1.73mm≤T≤63.50mm
Production Way: Hot Rolled/ Cold Rolled
Technical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
API 5L Pipe Length
| Threaded & Coupled Pipe | Shortest Length in Entire Shipment | Shortest Length in 95% of Entire Shipment | Minimum Average Length of Entire Shipment |
| Single Random | 16' 0" | 18' 0" | -- |
| Double Random | 22' 0" | -- | 35' 0" |
API 5L Seamless Pipe Coating
| Fusion Bonded Epoxy Coating (FBE Coating) | 3LPE Coating |
| Food Grade Epoxy Coatings | PTFE Coating |
| Phenolic Epoxy Coating | Glass Flake Coatings |
| Elastomeric Polyurethane Coating | Internal & External Coating |
| Halar Coatings | Any Liquid Epoxy Coating |
| Api 5l Dsaw Pipe Coating | Line Pipe Suppliers In India Coating |
API 5L Pipe Grades
| Grade L210 / A | 210 MPa (30.5 ksi) YS 335 MPa (48.6 ksi) UTS |
| Grade L245 / B | 245 MPa (35.5 ksi) YS 415 MPa (60.2 ksi) UTS |
| Grade L175 / A25 | 175 MPa (25.4 ksi) YS 310 MPa (45.0 ksi) UTS |
| Grade L290 / X42 | 290 MPa (42.1 ksi) YS 415 MPa (60.2 ksi) UTS |
| Grade L320 / X46 | 320 MPa (46.4 ksi) YS 435 MPa (63.1 ksi) UTS |
| Grade L360 / X52 | 360 MPa (52.2 ksi) YS 460 MPa (66.7 ksi) UTS |
| Grade L390 / X56 | 390 MPa (56.6 ksi) YS 490 MPa (71.1 ksi) UTS |
| Grade L415 / X60 | 415 MPa (60.2 ksi) YS 520 MPa (75.4 ksi) UTS |
| Grade L450 / X65 | 450 MPa (65.3 ksi) YS 535 MPa (77.6 ksi) UTS |
| Grade L485 / X70 | 485 MPa (70.3 ksi) YS 570 MPa (82.7 ksi) UTS |
| Grade L555 / X80 | |
| Grade X100 and X120 |
Comparative Specifications Of API 5L Line Pipe
The information here is summarized from ASTM Standards and API Specification 5L. Please see the specific standards for more information.
|
Grade Range |
A25 THROUGH X70 | GR B THROUGH X80 | TABLE 1 |
|
Size Range |
0.405 THROUGH 80 | 4-2/1 THROUGH 80 | TABLE 1 |
|
Type Of Pipe Ends |
PLAIN-END, THREADED-END, BEVELLED-END, SPECIAL COUPLING PIPE | PLAIN-END | TABLE 1 |
|
Seam Welding |
ALL METHODS CONTINOUS WELDING LIMITED TO GRADE A25 | ALL METHODS EXCEPT CONTINOUS AND LASER WELDING | TABLE 1 |
|
Electric Welds: Welder Frequency |
NO MINIMUM | 100 KHZ MINIMUM | 5.1.3.3.2 |
|
Heat Treatments Of Electric Welds |
REQUIRED FOR GRADES > X42 | REQUIRED FOR ALL GRADES (GR B THROUGH X80) | 5.1.3.3.1; J.3.3.2:6.2.7 |
|
Chemistry: Max C For Seamless Pipe |
0.28% FOR GRADES > GR B | 0.24% | TABLES 2A, 2B |
|
Chemistry: Max C For Welded Pipe |
0.26% FOR GRADES > GR B | 0.22% | TABLES 2A, 2B |
|
Chemistry: Max P |
0.03% | 0.03% | TABLES 2A, 2B |
|
Chemistry: Max S |
ONLY WHEN PURCHASES SPECIFIES SR18 | 0.02% | TABLES 2A, 2B |
|
Carbon Equivalent |
NONE | MAXIMUM REQUIRED FOR EACH GRADE | 4.2:4.3:6.1.3: SR15.1 |
|
Yield Strength, Maximum |
NONE | MAXIMUM FOR EACH GRADE | TABLES 3A, 3B |
| Uts, Maximum | NONE REQUIRED | MAXIMUM FOR EACH GRADE | TABLES 3A, 3B |
|
Fracture Toughness |
ONLY WHEN PURCHASER SPECIFIES SR4 | REQUIRED FOR ALL GRADES | 6.2.6; 9.3.5: 9.8.4; 9.10.7; |
|
Non-Destructive Inspection Of Seamless Pipes |
PERMITTED | SR4 MANDATORY | TABLE 14 9.7.2.6 |
|
Repare By Welding Of Pipe Body, Plate And Skelp |
PERMITTED BY AGREEMENT | PROHIBITED | 5.3.2;9.7.6: B.1;B.2 |
|
Certification |
CERTIFICATES WHEN SPECIFIED PER SR15 | PROHIBITED | 4.3;9.7.4.4;9.7.6;B.1.2;B.4 |
|
Traceability |
TRACEABLE ONLY UNTIL ALL TESTS ARE PASSED UNLESS SR15 IS SPECIFIED | CERTIFICATES (SR15.1) MANDATORY TRACEABLE AFTER COMPLETION OF TESTS (SR15.2) MANDATORY |
12.1 5.6 |
The American Petroleum Institute (API), founded in 1919, is the largest petroleum and natural gas industry association in the United States. API 5L specification is generally the standard for pipe suitable for use in conveying gas, water and oil in the natural gas and oil industry.
This specification establishes requirements for two product specification levels (PSL I and PSL 2). The grades (see the note) covered by this specification are the standard Grades A25, A, B, X42, X46, X52, X56, X60, X65, X70 and X80; and any intermediate grades.
Requirements for API 5L pipes are based on International Organization Standard ISO 3183, establishing standards for pipeline transportation systems within the offshore materials, equipment and structures for the natural gas, petroleum and petrochemical industries. At the time of writing the standard, the Technical Committee recognized that there were two basic product specifications (PSL) levels of technical specifications and therefore developed PSL 1 and PSL 2. PSL 1 is the standard quality for cable conduit that PSL 2 has. Chemical-mechanical properties and additional testing requirements.
