1.Steel Tubing is a hollow steel shape intended for structural purposes and made from carbon, stainless, or galvanized steel further divided as:
·Mechanical Tubing is used in low stress applications such as fences, kitchens, restaurants, hospitals, solar panels and made with wall thicknesses up to 10 gauge.
·Structural Tubing is for high stress structural application like bridges, buildings, roll cages, and underwater platforms with wall thickness from 3/16" and up. It is often referred to as Hollow Structural Sections or just the acronym HSS.
2.Pipe is a hollow structure that is intended to carry material such as liquids, gasses, or even solids. Its wall thickness is described by its Schedule and it is often broken down by type using the method of manufacturing it, either ERW or Seamless.
Seamless Pipe (and tubing) is made by extruding a steel block or by drilling a solid steel bar. Next, the extrusion or the drilled steel bar is cold drawn through a dye to achieve the diameter and thickness needed. Because this process can cause mechanical hardening, sometimes the material is annealed and straightened as a final process. Seamless Pipe & Tubing is subdivided as:
Cold Drawn Seamless, or CDS, exhibits precise tolerances and a good surface finish.
Hot Finished Seamless, or HFS, has less critical tolerances and somewhat scaly finish and is not as strong as CDS.
| Standard | API, ASTM, BS, DIN, GB, JIS |
| Outer Diameter | 21.3mm-660mm |
| Wall Thickness | 0.5mm-20mm |
| Dia Tolerance | Control with in the standard, OD:±1%, WT:±10% |
| Materials | 10#, 20#, 45#, Q235, Q345, Q195, Q215, SS400, ASTM A53/A106/A178/A333/A335, ST37, ST37-2, DIN 1629 ST35, ST45, ST52, DIN 17175 ST35.8, DIN 17175 19Mn5, 16Mn, Q345B, T1, T2, T5, T9, T11, T12, T22, T91, T92, P1, P2, P5, P9, P11,P12, P22, P91, P92, 15CrMo, Cr5Mo, 10CrMo910, 12CrMo, 13CrMo44, 30CrMo, GR.1, GR.3, GR.6, GR.7, Gr.B, X42, X46, X52, X60, X65, X70, X80, X100 |
| Zinc coating | Pre galvanized steel pipe: 60-150g/m² Hot dipped galvanized steel pipe: 200-400g/m² |
| Type of pipe coating | Epoxy powder |
| Inspection | ISO, BV, SGS, MTC |
| Packing | Steel strip packed. Standard Export Seaworthy Package. Suit forall kinds of transport,or as required |
| Application | Accessorize, machinery parts, structure steel pipe, piling pipe, sewage and clear water transportation, Line pipe for petroleum and so on |
| MOQ | 5metric ton,sample order accepted |
| Shipment time | Within 7-10 workdays after receiving deposit or L/C |
| Market | Southeast Asia, Middle East, Africa, Europe, South American and so on |
Below is our product catalog of steel pipe
| Descriptions | Grades | Standard | Specification (OD*WT)mm |
Usage |
| Structural steel pipe | 20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045. | GB/T8162-2008 | 6-1020*1.5-100 | For commom structure |
| Fluid steel pipe | 10#, 20#, ASTM A106, A210, A53, 16Mn, Q345A.B.C.D.E, Q295B.C.D.E | GB/T8163-2008 | 8-630*1.0-40 | Fluid feeding |
| High pressure boiler pipe | 20G, 15MnG, 20MnG, 15CrMoG, 12Cr1MoVG, St35.8, St45, SA106b, SA106c, SA210a, SA210c, A335P2, P11, P12, P22, P91, P92, A213 T2,T9, T11, T12, T22, T23, T91 | GB/5310-2008, ASTM A 106-99, DIN 17175-79 |
14-630*2-80 | Temperature-resistant seamless steel pipe far high-pressure boiler |
| Oil casing pipe | API SPEC 5CT J55, K55, N80, L80, C90, C95, P110 | API SPEC 5CT, SY/T6194-96, GB/T222-84, | 10-530*1.5-36 | Boiler pipes for refinery,heatexchangeing pipes,seamless steel pipes for pipeline |
| Pipeline | API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTM A53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245 |
API SPEC 5L, ISO 3183, GB/T 9711 | 60-630*1.5-40 | Carrying gas,water or oil in the industries of petroleum and natural gas |
| Alloy steel pipe | 4140, 42CrMo, 32CrMo, 15CrMo, Cr5Mo, 13CrMo44, 12Cr1MoV P22 T91,P91,P9, T9, Wb36 | GB5310-95, GB9948-88, ASTM A335/A335M, ASTM A213/213M, DIN17175-79, JISG3467-88, JISG3458-88 |
16-824*2-100 | The seamless steal pipes features resistance to high presure,high/low temperature and corrosion ano is used in the industries of petroleum, chemical engineering and. Electric pwer as well as boiler |
| Hydraulic prop pipe | 20#, 45#, 27SiMn, 30CrMoSiA | GB/T17396-2009 | 70-377*9-40 | Coal mine hydraulic support and pillar cylinder, column, can also be used for other hydraulic cylinder, column |

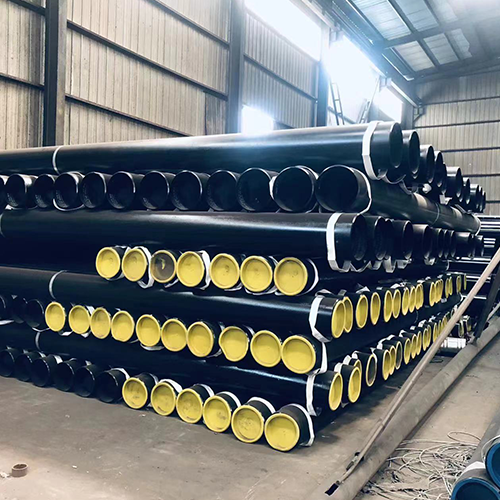

ASTM A106 Seamless steel pipe
| Grade | Chemical Compositions | |||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V | |
| A106-A | ≤0.25 | 0.27-0.93 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| A106-B | ≤0.30 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| A106-C | ≤0.35 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| Grade | Mechanical Properties | |||||||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||||||||
| A106-A | ≥330 | ≥205 | 30 | |||||||
| A106-B | ≥415 | ≥240 | 30 | |||||||
| A106-C | ≥485 | ≥275 | 30 | |||||||
| Chinese Standard | American Standard | German Standard | |
| 10# | ASTM A53-A | St37 | DIN1626 |
| ASTM A106-A | St37-2 | DIN17175 | |
| ASTM A179-C | St35-8 | DIN17175 | |
| 20# | ASTM A53-B | St42-2 | DIN1626 |
| ASTM A106-B | St45-8 | DIN17175 | |
| ASTM A178-C | St45-4 | DIN1629/4 | |
| 45# | ASTM A 1045 | CK45 | |
| 16Mn | ASTM A210-C | St52 | DIN1629/3 |
| St52.4 | DIN1629/4 | ||
ASTM A53 Carbon Steel Pipe & Tube
ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.
A53 pipe comes in three types (F, E, S) and two grades (A, B).
A53 Type F is manufactured with a furnace butt weld or may have a continuous weld (Grade A only)
A53 Type E has an electric resistance weld (Grades A and B)
A53 Type S is a seamless pipe and found in Grades A and B)
A53 Grade B Seamless is our most polar product under this specification and A53 pipe is commonly dual certified to A106 B Seamless pipe.
| Grade | Chemical Composition (%) Max. | ||||||||
| C | Mn | P | S | Cu | Ni | Cr | Mo | V | |
| A | 0.25 | 0.95 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| B | 0.30 | 1.20 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| Grade | Mechanical Properties | |
| Tensile Strength (Mpa) | Yield Strength (Mpa) | |
| A | ≥48,000 (≥330) | ≥30,000 (≥205) |
| B | ≥60,000 (≥415) | ≥35,000 (≥240) |
ASTM A53 steel pipe of size range
| NPS | OD | W T | |||||||||||
| INCH | MM | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 |
| 1/2″ | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | |||||
| 3/4″ | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | |||||
| 1″ | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | |||||
| 1.1/4″ | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | |||||
| 1.1/2″ | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | |||||
| 2″ | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | |||||
| 2.1/2″ | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | |||||
| 3″ | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | |||||
| 3.1/2″ | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | ||||||
| 4″ | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | ||||
| 5″ | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | |||||
| 6″ | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | |||||
| 8″ | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 |
| 10″ | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 |
| 12″ | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 |
| 14″ | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
| 16″ | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
| 18″ | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
| 20″ | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
| 22″ | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 24″ | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
| 26″ | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | ||||||||
| 28″ | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | |||||||
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7:Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
