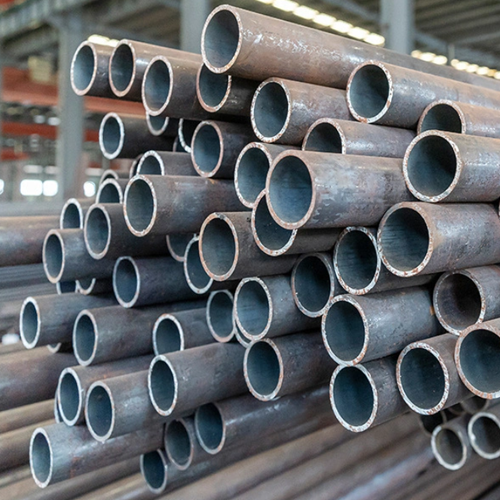

Name: API 5L B Cold-Rolled Carbon Seamless Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00128
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

API 5L B Cold-Rolled Carbon Seamless Steel pipe

Product Description

HRC:Hot rolled steel is a steel that is heated and rolled at a high temperature.lts strength is not very high,but it is sufficient
for our use.lts plasticity and weldability are good.
CRC:Through cold rolling.cold-rolled strip and steel plates with thinner
thickness and higher precision can be obtained.with high straightness, high surface finish.

Products Details

Carbon steel pipe

It mainly refers to steel with carbon mass fraction less than 2.11% without specially added alloy elements. Sometimes called plain carbon steel or carbon steel. It refers to iron carbon alloy with carbon content WC less than 2.11%. In addition to carbon, carbon steel generally contains a small amount of silicon, manganese, sulfur and phosphorus. Carbon steel can be divided into carbon structural steel, carbon tool steel and free cutting structural steel

Product Name	Carbon Steel Pipe
Material	A53 Gr.B,A36,ST52,ST35,ST42,ST45,X42,X46,X52,X60,X65X70
Standard	API 5L,ASTM A106 Gr.B,ASTM A53 Gr.B,ASTM A179/A192,ASTM A513,ASTM A671,ASTM A672,BS EN 10217,BS EN10296,BS EN 39,BS6323,DIN EN10217
Certificates	API 5L,ISO9001,SGS,BV,CCIC
Outer Diameter	15mm-1200mm
Wall Thickness	SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS
Length	1m,4m,6m,8m,12m according to buyer's request
Surface Treatment	black paint,varnish,oil,galvanized,anti-corrosion coated
Marking	Standard marking,or according to your request.Marking Method:Spray white paint
End Treatment	Plain End/Bevelled End/Grooved End/Threaded End With Plastic Caps
Technique	Hot Rolled or Cold Rolled ERW
Package	Loose package;Packaged in bundles(2Ton Max);bundled pipes with slings at the both end for easy loading and discharging;wooden cases;waterproof woven bag
Test	Chemical Component Analysis,Mechanical Properties,Technical Properties,Exterior Size Inspection,hydraulic testing,X-ray Test
Application	Liquid delivery,structure pipe,construction,petroleum cracking,oil pipe,gas pipe

Application scenarios
Carbon steel can be divided into carbon structural steel, carbon tool steel and free cutting structural steel. Carbon structural steel can be divided into building structural steel and machine manufacturing structural steel.

API 5L B Cold-Rolled Carbon Seamless Steel pipe:

(1) Steel pipes of different diameters can be produced using strip steel of the same width, and
steel pipes of large diameter can be produced from narrow strip steel.
(2) Under the same pressure conditions, the stress of the spiral welded seam is smaller than that of the straight seam, which is
75% to 90% of that of the straight seam welded pipe, so it can withstand greater pressure. Compared with the straight seam welded
pipe of the same outer diameter, the wall thickness can be reduced by 10% to 25% under the same pressure.
(3) The size is accurate, the general diameter tolerance does not exceed 0.12%, the deflection is less than 1/2000, and the
ovality is less than 1%. Generally, the sizing and straightening process can be omitted.
(4) Continuous production is possible. In theory, long steel pipes can be produced, with small head and tail loss, and can
increase the metal utilization rate by 6% to 8%.
(5) The equipment is light in weight and low initial investment. It can be made into a trailer-type mobile unit to directly
produce welded pipes at the construction site where the pipeline is laid.
