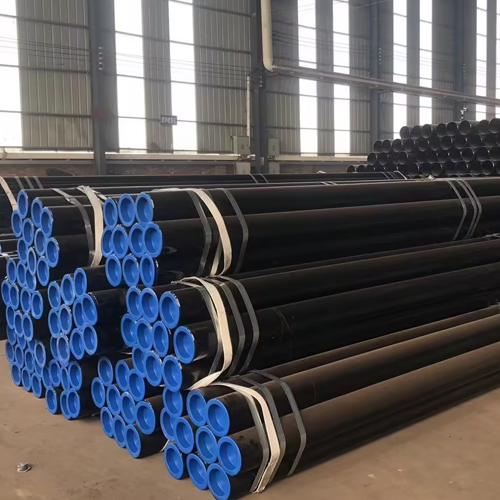

Name: API 5L Cold-Drawn Ms Alloy Round Seamless Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00122
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

API 5L Cold-Drawn Ms Alloy Round Seamless Steel pipe

Product Specification

Standard	API, ASTM, BS, DIN, GB, JIS
Outer Diameter:	21.3mm-660mm
Wall Thickness	0.5mm-20mm
Dia Tolerance	Control with in the standard, OD:+-1%, WT:+-10%
Materials	10#, 20#, 45#, Q235, Q345, Q195, Q215, ASTM A53/A106/A178/A333/A335, ST37, ST37-2, DIN 1629 ST35, ST45, DIN 17175 ST35.8, DIN 17175 19Mn5, 16Mn, Q345B, T1, T2, T5, T9, T11, T12, T22, T91, T92, P1, P2, P5, P9, P11,P12, P22, P91, P92, 15CrMO, Cr5Mo, 10CrMo910, 12CrMo, 13CrMo44, 30CrMo, GR.1, GR.3, GR.6, GR.7, Gr.B, X42, X46, X52, X60, X65, X70, X80, X100
Zinc coating	Pre galvanized steel pipe: 60-150g/m² Hot dipped galvanized steel pipe: 200-400g/m²
Inspection	ISO, BV, SGS, MTC
Packing	Steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required
Application	Widely used in Structure, Accessorize, Construction, Fluid transportation,machinery parts,the stress parts of the automobile tractor parts and so on
MOQ	5metric ton,sample order accepted
Shipment time	Within 7-10 workdays after receiving deposit or L/C

Below is our product catalog of steel pipe

Descriptions	Grades	Standard	Specification *(ODWT)mm**	Usage
Structural steel pipe	20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045.	GB/T8162-2008	6-1020*1.5-100	For commom structure
Fluid steel pipe	10#, 20#, ASTM A106, A210, A53, 16Mn, Q345A.B.C.D.E, Q295B.C.D.E	GB/T8163-2008	8-630*1.0-40	Fluid feeding
High pressure boiler pipe	20G, 15MnG, 20MnG, 15CrMoG, 12Cr1MoVG, St35.8, St45, SA106b, SA106c, SA210a, SA210c, A335P2, P11, P12, P22, P91, P92, A213 T2,T9, T11, T12, T22, T23, T91	GB/5310-2008, ASTM A 106-99, DIN 17175-79	14-630*2-80	Temperature-resistant seamless steel pipe far high-pressure boiler
Oil casing pipe	API SPEC 5CT J55, K55, N80, L80, C90, C95, P110	API SPEC 5CT, SY/T6194-96, GB/T222-84,	10-530*1.5-36	Boiler pipes for refinery,heatexchangeing pipes,seamless steel pipes for pipeline
Pipeline	API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTM A53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245	API SPEC 5L, ISO 3183, GB/T 9711	60-630*1.5-40	Carrying gas,water or oil in the industries of petroleum and natural gas
Alloy steel pipe	4140, 42CrMo, 32CrMo, 15CrMo, Cr5Mo, 13CrMo44, 12Cr1MoV P22 T91,P91,P9, T9, Wb36	GB5310-95, GB9948-88, ASTM A335/A335M, ASTM A213/213M, DIN17175-79, JISG3467-88, JISG3458-88	16-824*2-100	The seamless steel pipes features resistance to high presure,high/low temperature and corrosion ano is used in the industries of petroleum, chemical engineering and. Electric pwer as well as boiler
Hydraulic prop pipe	20#, 45#, 27SiMn, 30CrMoSiA	GB/T17396-2009	70-377*9-40	Coal mine hydraulic support and pillar cylinder, column, can also be used for other hydraulic cylinder, column

ASTM A106 Seamless steel pipe

Standard

Trademark

Chemical components

Mechanical property

P,S

Tensile Strength
(Mpa)

Yield Strength
(Mpa)

Elongation
(%)

ASTM A106

≤0.30

≥0.10

0.29~1.06

≤0.035

≤0.40

≤0.15

≤0.40

≤0.08

≥415

≥240

≥30

≤0.35

≥0.10

0.29~1.06

≤0.035

≤0.40

≤0.15

≤0.40

≤0.08

≥485

≥275

≥30

Chemical Composition of seamless steel pipe

Grade	Chemical composition (%)
Grade	C	Mn	Si	P	S	Al
Q235A	0.14~0.22	0.30~0.65	≤0.30	≤0.045	≤0.050
Q235B	0.12~0.20	0.30~0.67	≤0.30	≤0.045	≤0.045
Q235C	≤0.18	0.35~0.80	≤0.30	≤0.040	≤0.040
Q235D	≤0.17	0.35~0.80	≤0.35	≤0.035	≤0.040
Q345A	≤0.20	≤1.70	≤0.50	≤0.035	≤0.035
Q345B	≤0.20	≤1.70	≤0.50	≤0.035	≤0.035
Q345C	≤0.20	≤1.70	≤0.50	≤0.030	≤0.030	≥0.015
Q345D	≤0.18	≤1.70	≤0.50	≤0.030	≤0.025	≥0.015
Q345E	≤0.18	≤1.70	≤0.50	≤0.025	≤0.020	≥0.015

Q345A,B,C,D and E each contains Nb≤0.07,V≤0.15,Ti≤0.20,Cr≤0.30,Ni≤0.012,Mo≤0.10

Material	Chemical composition (%)
Material	C	Mn	P	S	Si	Ni	Cu
1020	0.17~0.23	0.35~0.65	≤0.035	≤0.035	0.17~0.37	≤0.3	≤0.25
1045	0.42~0.5	0.5~0.8	≤0.04	≤0.045	0.17~0.37	≤0.25	≤0.25
1010	0.08-0.13	0.30-0.60	≤0.040	≤0.050	-	-	≤0.20
1035	0.32-0.38	0.50-0.80	≤0.040	≤0.050	-	-	≤0.20

Mechanical Properties of seamless steel pipe

Steel material	Tensile Strength Mpa	Yield strength Mpa	Elongation %	Hardness	Straightness
1020	≥510	≥245	≥25	≤156HB	0.3~1.0
1045	≥647	≥355	≥16	≤HRC62	0.3~1.0
1010	≥410	≥245	≥25	≤156HB	0.3~1.0
1035	≥530	≥315	≥20	≤156HB	0.3~1.0

FAQ

Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7:Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
