The American Petroleum Institute specification API 5L is designed for transportation systems in the petroleum and natural gas industries for conveying gas, water, and oil. API 5L X42 is a steel grade of API 5L which specifies the manufacture of two product levels and two manufacturing types seamless and welded steel line pipe.
We can cut the seamless steel pipe into the length you demand, and can make the surface to be bright by milling and grinding at the Lathe, and can grind the outer diameter and wall thickness to be the dimension you demand.If the sizes are not available from the standard common stock sizes, and the quantity are not enough for the new production, then we need process the stock larger seamless pipes into the sizes you need. And we also can make steel pipes deep processing.
|
Standard |
API A106 GR.B A53 Gr.B seamless steel pipe / ASTM A106 Gr.B A53 Gr.B steel tube AP175-79, DIN2I5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179/A192/A213/A210 /370 WP91, WP11,WP22. DIN17440, DIN2448,JISG3452-54. |
|
Material |
API5L,Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53Gr.A&B,ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2,SY/T5037, SY/T5040 STP410,STP42. |
|
Certificates |
API5L ISO 9001:2008 TUV SGS BV etc |
|
Outside Diameter |
1/2'--24' |
|
21.3mm-609.6mm |
|
|
Thickness |
SCH5S, SCH10S, SCH20S,SCH20, SCH30,STD, SCH40, SCH60, SCH80, SCH100, SCH140, SCH160,XS, |
|
1.65mm-59.54mm |
|
|
Length |
5.8m 6m Fixed, 12m Fixed, 2-12m Random. |
|
Technic |
1/2'--6': hot piercing processing technic |
|
6'--24' : hot extrusion processing technic |
|
|
Surface Treatment |
Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation . |
|
Packing |
Bundles or In bulk. bundled pipes with two slings at the both end for easy loading and discharging, |
|
End |

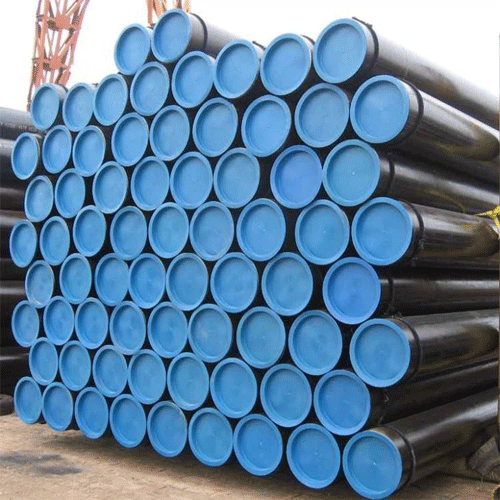

Bevel end(>2"), Plain (≤2"),with plastic cap, with screwed and socket. |
|
Usage /Application |
Oil pipe line, Drill pipe, Hydraulic pipe, Gas pipe, Fluid pipe, Boiler pipe,Conduit pipe, Scaffolding pipe pharmaceutical and ship building etc. |
The American Petroleum Institute specification API 5L is designed for transportation systems in the petroleum and natural gas industries for conveying gas, water, and oil. API 5L X42 is a steel grade of API 5L which specifies the manufacture of two product levels and two manufacturing types seamless and welded steel line pipe. HA Steel also provides internal & external coating like Black paint, varnished, FBE coating, 3LPE coating and all lined pipe on steel pipes as per the customers' requirement. HA steel supply and manufactured a large inventory of API 5L X42 steel pipe.
| Specification | API 5L x42 | ISO 3183 L290 |
| Grades | API 5L X42Q API 5L X42R API 5L X42N API 5L X42Q API 5L X42M |
ISO 3183 L290Q ISO 3183 L290R ISO 3183 L290N ISO 3183 L290Q ISO 3183 L290M |
| Grades | C | Mn | P | S |
| X42 (Seamless) | 0.26 | 1.30 | 0.03 | 0.03 |
| X42 (Welded) | 0.22 | 1.30 | 0.03 | 0.03 |
| Grades | C | Mn | Si | P | S |
| X42R 2(Seamless) | 0.24 | 1.2 | 0.40 | 0.025 | 0.015 |
| X42N (Seamless) | 0.24 | 1.2 | 0.40 | 0.025 | 0.015 |
| X42Q (Seamless) | 0.24 | 1.4 | 0.45 | 0.025 | 0.015 |
| X42M (Welded) | 0.22 | 1.2 | 0.45 | 0.025 | 0.015 |
| Grades | Yield Strength | Tensile Strength | Elongation,% |
| API 5L X42 | 42100 | 60200 | 23 |
| Charpy testing | None required | Required for all grades |
| Nondestructive inspection of seamless | Only when the purchaser specifies SR4 | SR4 mandatory |
| Certification | Certificates when specified per SR15 | Certificates (SR 15.1) mandatory |
| Traceability | Traceable only until all tests are passed, unless SR15 is specified | Traceable after completion of tests (SR 15.2) mandatory |
| Hydrostatic Test | Required | Required |
Packing details:
1.Black varnish painted or oil painted anti-corrosion oil ,2PE, 3PE on the surface
2.Plain,squire cut or bevelled end by caps
3.In hexagon or triangle bundle with steel strips
4. Marking: As per customer's requirment
Shipping details:
Trade Terms:FOB/CIF/CFR
Payment Terms:L/C,T/T, Western Union.
Loading Port:XinGang TianJin, China
Delivery: Within 15-20days after we receive deposit or L/C at sight
