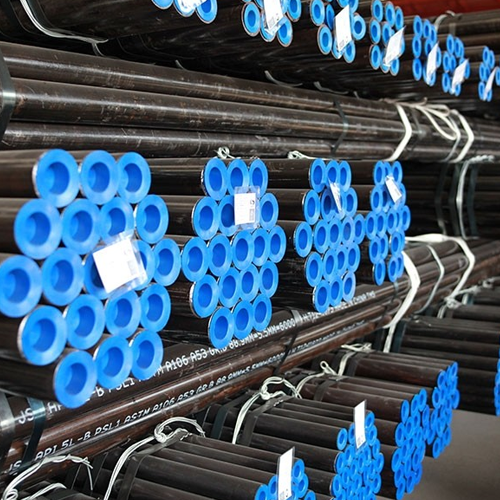

Name: API 5L Psl1/2/ASTM A53/A106 Gr.B/JIS DIN/A179/A192/A333 X42/X52/X56/X60/65 X70 Seamless Carbon Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00162
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

API 5L Psl1/2/ASTM A53/A106 Gr.B/JIS DIN/A179/A192/A333 X42/X52/X56/X60/65 X70 Seamless Carbon Steel Pipe

Product Description

Why you choose us?

1) HIGH QUALITY---We can guarantee for YOU!!

2) LOW PRICE--We can try the best to give YOU!!

3) 24 HOURS ONLINE SERVICE--We never stop serving YOU!!

4) SMALL ORDER IS ACCEPTABLE--YOU are warmly welcomed to contact us!!

PRODUCT INFORMATION

Carbon Seamless Steel Pipe / tubes
Seamless steel pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.
Hot rolled seamless steel pipe deformation process can be summarized as three stages: extension, perforation and finishing. Hot rolled seamless steel pipes is relative to the cold-rolled, cold rolling is below the recrystallization temperature of the rolling and hot rolled is carried out at above the recrystallization temperature of the rolling. Hot rolled seamless steel pipe can damage the refinement of the crystal grains of the steel, cast microstructure of the steel ingot and eliminate the defects of the microstructure so that the the steel organization compacting, improves the mechanical properties. This improvement is reflected in the rolling direction so that the steel is no longer at a certain extent isotropic; pouring the formation of bubbles, cracks and osteoporosis, under high pressure and temperature can also be welded together.
Hot Rolled Steel Pipes (Seamless Tube) in different size, specifications, grades & thickness as per the client's requirements. The range offered by tubes is available as per the international & national standard and can be available from us at affordable prices. These pipes are used in various application industry like shipbuilding, power plants, oil and gas, automotive, sugar mills and distilleries, cement and construction industries et

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM API 5L, API 5CT Japanese JIS,German DIN,Chinese GB,BS standard
Steel Grade	ASTM A53, A106, A210, A252, A333 etc; P.S.L.1: A, B, x42, x46, x52, x56, x60, x65, x70 P.S.L.2: B, x42, x46, x52, x56, x60, x65, x70, x80 JIS STPG42, G3454, G3456 etc; DIN St37, St42, St45, St52, DIN1626, DIN17175; GB 20#, Q345, 16Mn etc.
Special specifications	Available according to customer's requirements and quantity.
End Shape	Beveled end, plain end, varnished, or adding plastic caps to protect the two ends as per customer's requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	1.Widely used in the mechanical treatment field, petrochemical industry, transport and construction field 2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; 3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc 4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

ASTM A53 Carbon Steel Pipe & Tube
ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

ASTM A53 seamless steel pipe chemical composition:

Grade	Chemical Composition (%) Max.
Grade	C	Mn	P	S	Cu	Ni	Cr	Mo	V
A	0.25	0.95	0.05	0.045	0.40	0.40	0.40	0.15	0.08
B	0.30	1.20	0.05	0.045	0.40	0.40	0.40	0.15	0.08

ASTM A53 seamless steel pipe mechanical properties:

Grade	Mechanical Properties
Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)
A	≥48,000 (≥330)	≥30,000 (≥205)
B	≥60,000 (≥415)	≥35,000 (≥240)

API 5L line pipe (Seamless and welded pipe) of all grades have P.S.L.1 and P.S.L.2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.
P.S.L is the short name of product standard level. The product standard level of line pipe have P.S.L.1 and P.S.L.2, also we could say the quality standard divided in P.S.L.1 and P.S.L2. P.S.L2 is higher than P.S.L.1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or P.S..L2.
P.S.L.2 is more strictly than P.S.L1 on the chemical properties, tensile strength, non-destructive test, and impact test.
API 5L P.S.L.1 steel line pipe not required to do the impact test.
For API 5L P.S.L.2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0ºC. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.
For API 5L Grade X80 P.S.L.2 line pipe, at 0ºC for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.
For API 5L P.S.L.2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For P.S.L1 not required Non-destructive test, for P.S.L.2 shall do the Non-destructive test for each single pipe.
Chemical composition and mechanical strength is also different between API 5L P.S.L.1 line pipe and API 5L P.S..L2 line pipe. For the detailed specification as below. API 5L P.S.L.2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in P.S.L2 tensile strength have maximum limits.

API 5L P.S.L .1 / P.S.L .2 Chemical Composition:

Standard	Product specification category	Steel Grade	Chemical Composite
Standard	Product specification category	Steel Grade	C	Mn	P	S	Si	V	Nb	Ti	CEpcm
API 5L	P.S.L. 1	L210 or A	≤0.22	≤0.90	≤0.030	≤0.030					≤0.25
		L245 or B	≤0.28	≤1.20	≤0.030	≤0.030					≤0.25
		L290 or X42	≤0.28	≤1.30	≤0.030	≤0.030					≤0.25
		L320 or X46	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L360 or X52	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L390 or X56	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L415 or X60	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
	P.S.L. 2	L245R or BR	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290R or X42R	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L245N or BN	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290N or X42N	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L320N or X46N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.40	≤0.07	≤0.05	≤0.04	≤0.25
		L360N or X52N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L390N or X56N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L415N or X60N	≤0.24	≤1,40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	Negotiate

API 5L P.S.L 1 / P.S.L 2 Mechanical Properties:

Standard	Product specification category	Steel Grade	Yield Strength	Tensile Strength
API 5L	P.S.L 1	L210 or A	210	335
		L245 or B	245	415
		L290 or x42	290	415
		L320 or X46	320	435
		L360 or X52	360	460
		L390 or X56	390	490
		L415 or X60	415	520
	P.S.L 2	L245R or BR	245~450	415~760
		L290R or X42R	290~495	415~760
		L245N or BN	245~450	415~760
		L290N or X42N	290~495	415~760
		L320N or X46N	320~525	435~760
		L360N or X52N	360~530	460~760
		L390N or X56N	390~545	490~760
		L415N or X60N	415~565	520~760

Steel pipe nominal outer diameter range	Steel pipe outer diameter	Coating category	Coating	Coating thickness
DN100~600	114.3~609.6	3PE (three-layer polyethylene)	First layer: epoxy powder (green)	2.0~4.5mm
			Intermediate layer: adhesive (white)
			Outermost layer: polyethylene (black)
		2PE (two layers of polyethylene)	First layer: adhesive	2.0~4.5mm
			Outermost layer: polyethylene
DN80~600	88.9~609.6	Epoxy powder	Epoxy powder	200~400um
		2FBE (Double layer epoxy powder)	First layer: epoxy powder (green)	400~800um
			Outermost layer: reinforced epoxy powder (gray green)
DN100~600	114.3~609.6	3PP (three layers of polypropylene)	First layer: epoxy powder (green)	2.5~3mm
			Intermediate layer: adhesive (white)
			Outermost layer: polypropylene (white)

INCH	OD	API 5L ASTM A53 Standard Wall Thickness
	(MM)	SCH 10	SCH 20	SCH 40	SCH 60	SCH 80	SCH 100	SCH 160
	(MM)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
1/4"	13.7			2.24		3.02
3/8"	17.1			2.31		3.2
1/2"	21.3	2.11		2.77		3.73		4.78
3/4"	26.7	2.11		2.87		3.91		5.56
1"	33.4	2.77		3.38		4.55		6.35
1-1/4"	42.2	2.77		3.56		4.85		6.35
1-1/2"	48.3	2.77		3.68		5.08		7.14
2"	60.3	2.77		3.91		5.54		8.74
2-1/2"	73	3.05		5.16		7.01		9.53
3"	88.9	3.05		5.49		7.62		11.13
3-1/2"	101.6	3.05		5.74		8.08
4"	114.3	3.05	4.50	6.02		8.56		13.49
5"	141.3	3.4		6.55		9.53		15.88
6"	168.3	3.4		7.11		10.97		18.26
8"	219.1	3.76	6.35	8.18	10.31	12.70	15.09	23.01
10"	273	4.19	6.35	9.27	12.7	15.09	18.26	28.58
12"	323.8	4.57	6.35	10.31	14.27	17.48	21.44	33.32
14"	355	6.35	7.92	11.13	15.09	19.05	23.83	36.71
16"	406	6.35	7.92	12.70	16.66	21.44	26.19	40.49
18"	457	6.35	7.92	14.27	19.05	23.83	29.36	46.24
20"	508	6.35	9.53	15.09	20.62	26.19	32.54	50.01
22"	559	6.35	9.53		22.23	28.58	34.93	54.98
24"	610	6.35	9.53	17.48	24.61	30.96	38.89	59.54
26"	660	7.92	12.7
