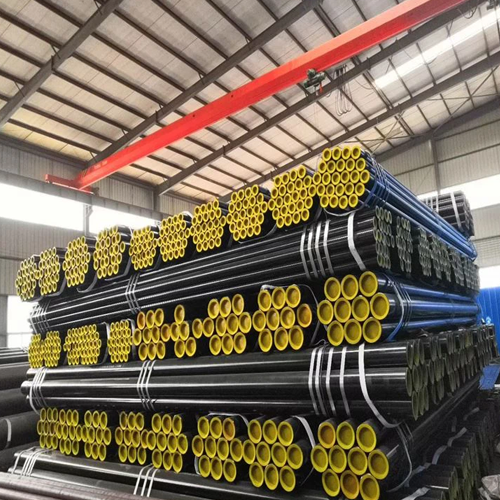

Name: API 5L X52/X60/X65/X70 Seamless Welded Steel Pipes
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00138
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

API 5L X52/X60/X65/X70 Seamless Welded Steel Pipes

Product Description

Product Name	API 5L X52/X60/X65/X70 Seamless Welded Steel Pipes
Standard	API, ASTM, BS, DIN, GB, JIS
Outside Diameter	21.3-1420mm Or customize
Wall Thickness	2.11-300mm Or customize
Dia Tolerance	Control with in the standard, OD:+-1%, WT:+-10%
Materials	10#,20#,45#,Q235,Q345,Q195,Q215,Q345C,Q345A
	ASTM A53A/A53B/ A178C/A106B API5L
	ST37,ST37-2,DIN 1629 ST35, ST45,DIN 17175 ST35.8,DIN 17175 19Mn5
	16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO,Cr5Mo,10CrMo910,12CrMo,13CrMo44,30CrMo,A333 GR.1,GR.3,GR.6,GR.7
	Gr.B,X42,X46,X52,X60,X65,X70,X80,X100
Inspection	ISO,BV,SGS,MTC
Packing	Steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required
Application	Widely used in Structure, Accessorize,Construction, Fluid transportation,machinery parts,the stress parts of the automobile tractor parts and so on

Nominal Pipe Size 1/2″ to 48 " O.D;

Length:5- 12 Meter lengths;

Wall Thickness - Schedule 10 through 160, STD, XS, XXS;

Manufacturing process: SSAW, LSAW, ERW welded/ Seamless;

Ends: Plain, beveled ends and threaded ends.

The American Petroleum Institute specification API 5L is designed for transportation systems in the petroleum and natural gas industries for conveying gas, water, and oil. API 5L X42 is a steel grade of API 5L which specifies the manufacture of two product levels and two manufacturing types seamless and welded steel line pipe. ST Steel also provides internal & external coating like Black paint, varnished, FBE coating, 3LPE coating and all lined pipe on steel pipes as per the customers' requirement. HA steel supply and manufactured a large inventory of API 5L X42 steel pipe.

API 5L X42 Equivalent Material

Specification	API 5L x42	ISO 3183 L290
Grades	API 5L X42Q API 5L X42R API 5L X42N API 5L X42Q API 5L X42M	ISO 3183 L290Q ISO 3183 L290R ISO 3183 L290N ISO 3183 L290Q ISO 3183 L290M

Chemical Composition for X42 pipe

Grades	C	Mn	P	S
X42 (Seamless)	0.26	1.30	0.03	0.03
X42 (Welded)	0.22	1.30	0.03	0.03

Chemical Composition for X52 pipe

Grades	C	Mn	Si	P	S
X42R 2(Seamless)	0.24	1.2	0.40	0.025	0.015
X42N (Seamless)	0.24	1.2	0.40	0.025	0.015
X42Q (Seamless)	0.24	1.4	0.45	0.025	0.015
X42M (Welded)	0.22	1.2	0.45	0.025	0.015

API 5L X42 Mechanical Property

Grades	Yield Strength	Tensile Strength	Elongation,%
API 5L X42	42100	60200	23

Differences between API 5L X42

Charpy testing	None required	Required for all grades
Nondestructive inspection of seamless	Only when the purchaser specifies SR4	SR4 mandatory
Certification	Certificates when specified per SR15	Certificates (SR 15.1) mandatory
Traceability	Traceable only until all tests are passed, unless SR15 is specified	Traceable after completion of tests (SR 15.2) mandatory
Hydrostatic Test	Required	Required
