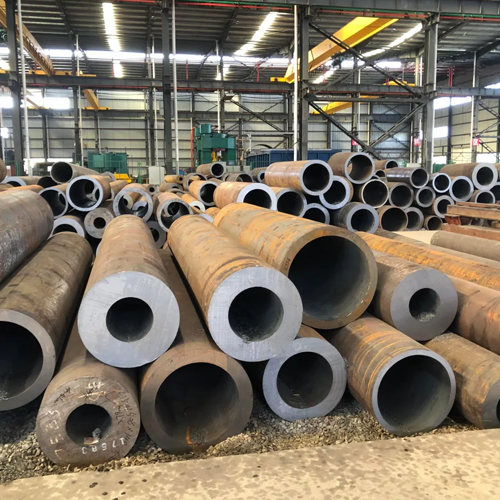

ASTM A106 A36 A53 A192 Q235 Q235B Seamless Carbon Steel PipeProduct Description
|
Product Name
|
Carbon Steel Pipe
|
|
Material
|
A53 Gr.B,A36,ST52,ST35,ST42,ST45,X42,X46,X52,X60,X65X70
|
|
Standard
|
API 5L,ASTM A106 Gr.B,ASTM A53 Gr.B,ASTM A179/A192,ASTM A513,ASTM A671,ASTM A672,BS EN 10217,BS EN10296,BS EN 39,BS6323,DIN
EN10217
|
|
Certificates
|
API 5L,ISO9001,SGS,BV,CCIC
|
|
Outer Diameter
|
15mm-1200mm
|
|
Wall Thickness
|
SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS
|
|
Length
|
1m,4m,6m,8m,12m according to buyer's request
|
|
Surface Treatment
|
black paint,varnish,oil,galvanized,anti-corrosion coated
|
|
Marking
|
Standard marking,or according to your request.Marking Method:Spray white paint
|
|
End Treatment
|
Plain End/Bevelled End/Grooved End/Threaded End With Plastic Caps
|
|
Technique
|
Hot Rolled or Cold Rolled ERW
|
|
Application
|
Liquid delivery,structure pipe,construction,petroleum cracking,oil pipe,gas pipe
|
The raw material of the carbon steel pipe is a round tube blank, and the round tube embryo is cut by the cutting machine and the growth of the blank is about 1 meter, and is sent to the furnace by the conveyor belt for heating. The billets are heated in a furnace at a temperature of about 1200 degrees Celsius. The fuel is hydrogen or acetylene. The temperature control in the furnace is the key problem. After the round tube billet is released, it must be perforated by the pressure piercing machine. Generally, the most common piercing machine is the conical roll piercing machine, which has high production efficiency, good product quality, large perforating and expanding diameter, and can wear a variety of steel. After the perforation, the round tube blank is successively rolled by three roller skew, continuous rolling or extrusion. After extrusion, the tube should be removed for sizing. The sizing machine rotates into the steel embryo at high speed through the conical drill to punch holes and form the steel pipe. The inner diameter of the steel pipe is determined by the outer diameter length of the caliper drill bit. After the steel pipe is calibrated, it enters the cooling tower and is cooled by water spray. After the steel pipe is cooled, it will be straightened. After the steel pipe is straightened, it is sent to the metal inspection machine (or hydraulic test) for internal inspection. If there are cracks, bubbles and other problems inside the steel pipe, it will be detected. After the steel pipe inspection, it is also strictly selected by hand. After the steel pipe quality inspection, paint the number, specification, production batch number, etc. And hoisted by crane into the warehouse.
Carbon steel pipe is a spiral seam steel pipe with a steel coiled plate as a raw material, which is often extruded and formed by welding with an automatic double-wire submerged arc welding process. The spiral steel pipe feeds the strip steel into the welded pipe unit, and after being rolled by multiple rollers, the strip steel is gradually rolled up to form a round tube blank with an open gap. 3mm, and make the two ends of the welding port flush.
