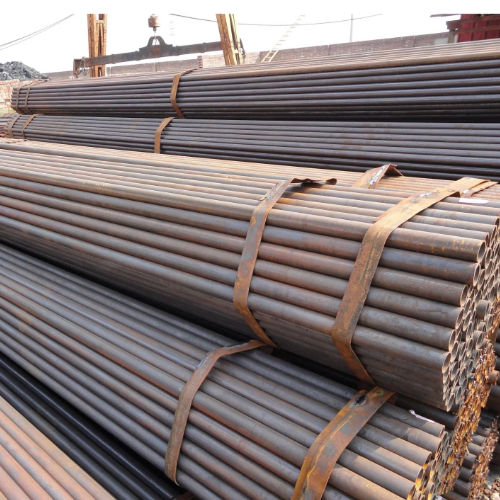

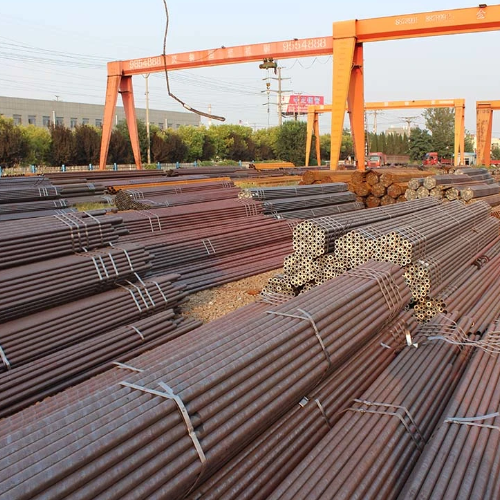

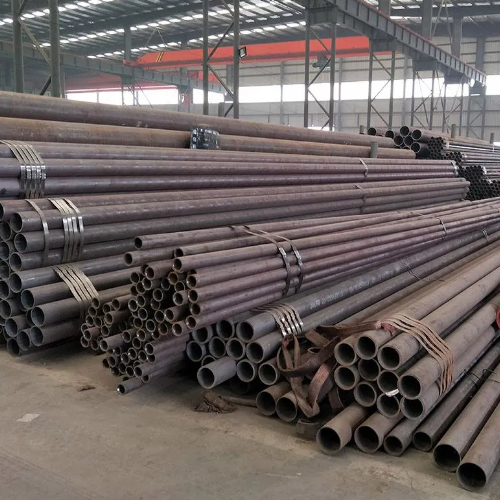

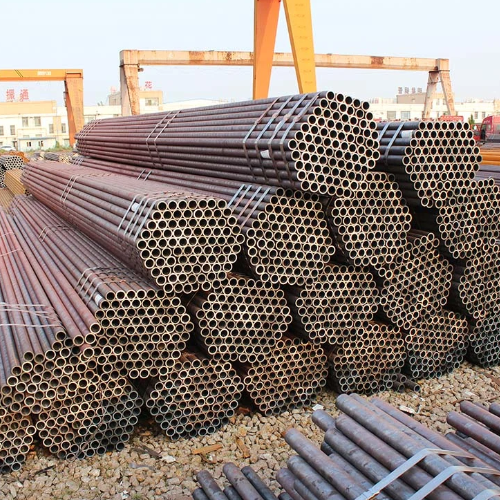

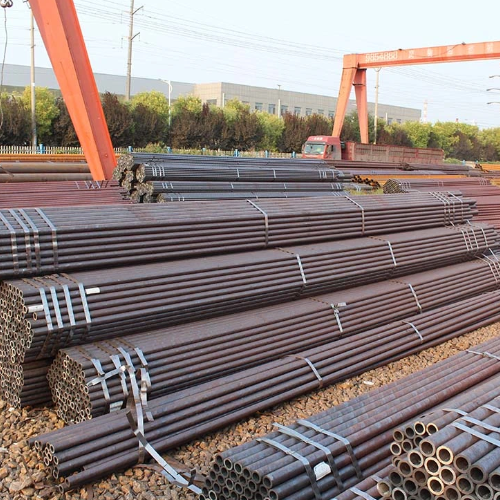

Name: ASTM A106 A53 Gr. B API 5L Seamless Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00091
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

Product Introduction
Carbon Seamless Steel Pipe / Tube
Seamless carbon steel pipes are made of steel ingots or solid billets through perforation to make capillaries, which are then hot-rolled, cold-rolled or cold-drawn. The raw material of carbon steel pipe is a round tube blank, which is cut by a cutting machine into a billet with a length of about 1 meter, and sent to a furnace for heating through a conveyor belt. The billets are fed into the furnace and heated at about 1200 degrees Celsius. The fuel is hydrogen or acetylene. Furnace temperature control is a critical issue. After the round tube blank is released from the furnace, it is pierced through a pressure punching machine. Generally, the more common punching machine is the conical roller punching machine. This kind of punching machine has high production efficiency, good product quality, large amount of perforation and diameter expansion, and can wear a variety of steel grades. After perforation, the round tube blank is successively cross-rolled, continuously rolled or extruded by three rolls.
1. Seamless steel pipe for structure (GBT8162-2008). Mainly used for general structure and mechanical structure. Its representative material (brand): carbon steel, 20, 45 steel; alloy steel Q345, 20Cr, 40Cr, 20CrMo, 30-35CrMo, 42CrMo, etc.
2. Seamless steel pipes for conveying fluids (GBT8163-2008). It is mainly used for conveying fluid pipelines in engineering and large-scale equipment. The representative material (grade) is 20, Q345, etc.
3. Seamless steel pipes for low and medium pressure boilers (GB3087-2008) are used to manufacture various structures of low and medium pressure boiler superheated steam pipes, boiling water pipes and superheated steam pipes, large smoke pipes, small smoke pipes and arch bricks for locomotive boilers Hot-rolled and cold-drawn (rolled) seamless steel pipes of high-quality carbon structural steel for pipes. The representative material is 10, 20 steel.

Product Specification

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM API 5L, API 5CT Japanese JIS, German DIN, Chinese GB, BS standard
Steel Grade	ASTM A53, A106, A210, A252, A178, A333, A335, SAE1018, SAE1020, SAE1045 etc; PSL1: A, B, x42, x46, x52, x56, x60, x65, x70 PSL2: B, x42, x46, x52, x56, x60, x65, x70, x80 JIS SS400, STPG42, G3454, G3456 etc; DIN St35, St35.8, St37, St42, St45, St52, DIN1626, DIN17175 etc; GB 10#, 20#, 45#, Q235, Q345, Q195, 16Mn, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo etc;
Special specifications	Available according to customer's requirements and quantity.
End Shape	Beveled end, plain end, varnished, or adding plastic caps to protect the two ends as per customer's requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	1.Widely used in the mechanical treatment field, petrochemical industry, transport and construction field 2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; 3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc 4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

Below is our product catalog of steel pipe:

Descriptions	Grades	Standard	Specification *(ODWT)mm**	Usage
Structural steel pipe	20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045.	GB/T8162-2008, ASTM A29/A29M-2015	6-1020*1.5-100	For commom structure
Fluid steel pipe	10#, 20#, ASTM A106, A210, A53, 16Mn, Q345A.B.C.D.E, Q295B.C.D.E	GB/T8163-2008	8-630*1.0-40	Fluid feeding
High pressure boiler pipe	20G, 15MnG, 20MnG, 15CrMoG, 12Cr1MoVG, St35.8, St45, SA106b, SA106c, SA210a, SA210c, A335P2, P11, P12, P22, P91, P92, A213 T2,T9, T11, T12, T22, T23, T91	GB/5310-2008, ASTM A 106-99, DIN 17175-79	14-630*2-80	Temperature-resistant seamless steel pipe far high-pressure boiler
Oil casing pipe	API SPEC 5CT J55, K55, N80, L80, C90, C95, P110	API SPEC 5CT, SY/T6194-96, GB/T222-84,	10-530*1.5-36	Boiler pipes for refinery,heatexchangeing pipes,seamless steel pipes for pipeline
Pipeline	API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTM A53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245	API SPEC 5L, ISO 3183, GB/T 9711	60-630*1.5-40	Carrying gas,water or oil in the industries of petroleum and natural gas
Alloy steel pipe	4140, 42CrMo, 32CrMo, 15CrMo, Cr5Mo, 13CrMo44, 12Cr1MoV P22 T91,P91,P9, T9, Wb36	GB5310-95, GB9948-88, ASTM A335/A335M, ASTM A213/213M, DIN17175-79, JISG3467-88, JISG3458-88	16-824*2-100	The seamless steal pipes features resistance to high presure,high/low temperature and corrosion ano is used in the industries of petroleum, chemical engineering and. Electric pwer as well as boiler
Hydraulic prop pipe	20#, 45#, 27SiMn, 30CrMoSiA	GB/T17396-2009	70-377*9-40	Coal mine hydraulic support and pillar cylinder, column, can also be used for other hydraulic cylinder, column
