Product name
|
Seamless pipe; SMLS steel pipes
|
|
Standards & Grades
|
GB/T8162 20#, 35#, 45# Q345, Q345B, Q345C, Q345D, Q345E, 20Mn2, 30Mn2, 40Mn2, 20CrMo, 30CrMo, 35CrMo, 42CrMo; GB/T8163 20#; GB/T3087 10#, 20#; GB/T5310 20G, 20MnG, 25MnG, 15CrMoG, 12Cr1MoVG; GB/T9948 20#, 16Mn,12CrMo, 15CrMo; GB6479 20#, 16Mn, 12CrMo, 15CrMo; ASME SA213 T5, T9; API 5L, A, B, X42, X46, X56, X60, X65; ASTM A106, ASTM A53 Gr B; SA210, SA178, SA192, SA335, T2/P2, T11/P11, T12/P12, T22/P22, T91/P91; DIN 17175 ST35.8, ST45.8, DIN1629; API 5L Gr.B, X42-X70; ISO 11960, GOST, API 5CT J55 K55 N80-1 N80-Q L80-1 L80-9Cr P110, etc.
|
|
Structural pipe
|
20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045.
|
|
Liquid pipe
|
20# q295b-e, q345b-e
|
|
High pressure boiler tube
|
20G 15MnG 20MnG 15CrMoG, 12Cr1MoVG
St35.8, sa106b, sa106c, sa210a, sa210c, A333P2, A333P11, A33P12, A333P22, A33P36, A333P91, A333P92, A335T2, A335T11, A335T12, A335T22, A335T91, A335T23, A335T9
|
|
Pipeline
|
API SPEC 5L, X42, X52, X60, X65,X70,X80
ASTMA53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245
|
|
Alloy pipe
|
4140, 42CrMo, 32CrMo, 15CrMo
|
|
Outer Diameter
|
10~630mm |
|
Wall Thickness
|
2.5~50mm
|
|
Length
|
5.8m, 6m, 11.8m, 12m, Random length, or as required
|
|
Delivery conditions
|
N-(normalizing); A-(annealing); T-(tempering); Q-(quenching); N+T; Q+T.etc
|
|
Processing
|
Galvanizing; cutting; making thread outside the pipe; Machining.
|
|
Ends
|
Flat end or beveled end, threaded end. Protected by plastic caps or steel rings
|
|

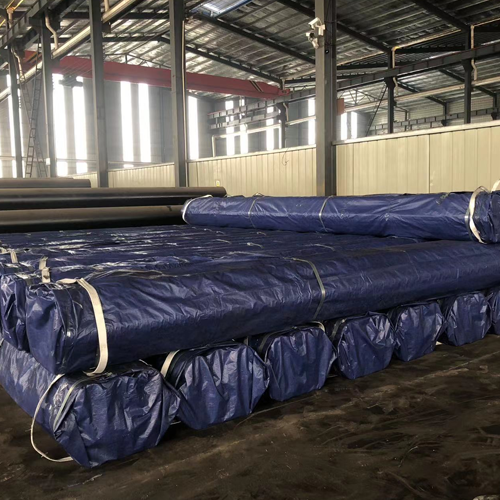

Packing
|
Black paint, Varnish painting, Tarpaulin packing
|
|
Standard export packaging, suitable for various modes of transportation,Or provided on request.
|
|
|
Pricing Term
|
Ex-Work,FOB,CNF,CFR,CIF,FCA etc.
|
|
Payment term
|
TT, L/C, Western Union, etc.
|
|
MOQ
|
1 Ton
|
ASTM A106 seamless pipe also known as ASME SA106 pipes generally refers to pipes that are of seamlessconstruction and are majorly used for transportation of gas and liquid from one location to another locationASTM A106 pipes are most suitable for High-temperature services and handle a good amount of pressureThese pipes are manufactured as per the dimension standard of ANSI B36.10 / ASME B36.10. In ASTNA106 Grade B is the most commonly used pipe, this grade is the client's first choice for use, due toeconomical prices and ease of availability throughout the world.
The pipes have minimum Yield strenath of 240 MPa for grade B pipes and 275 MPa for arade C pipes andminimum tensile strength of 415 MPa for grade B pipes and 485 MPa for grade C pipes with a minimumelongation of 16.5%/30%.
The pipes are manufactured by cold drawn finish process or Hot finished process. Cold draw finish pipesrequire subsequent heat treatment of Normalizing at 900 deg. C. These pipes are mainly used in industriessuch as oil and gas refineries, petrochemical plants, boiler, chemical plants, Shipbuilding.
