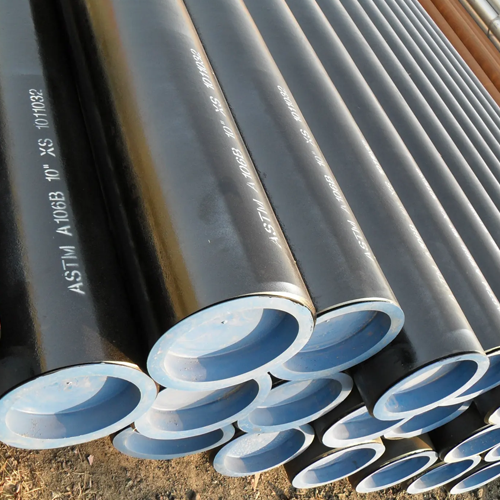

Seamless steel pipe is made of the whole round steel, and the steel pipe without weld on the surface is called seamless steel pipe. Seamless steel pipes are mainly used as drilling pipes for petroleum geology, cracking pipes for petrochemical industry, boiler pipes, bearing pipes and high-precision structural steel pipes for automobiles, tractors and aviation.
| Product Name | Seamless Steel Pipe |
| Standard |
API 5L Seamless Carbon Steel Pipe for Gr B X42 X46 X52 X56 X60 X65 X70 Psl-1/Psl-2
|
| Material |
API5L Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53 Gr.A & B, ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2, SY/T5037, SY/T5040 STP410, STP42. |
| Certificates | API5L ISO 9001:2008 TUV SGS BV etc. |
| Outside Diameter | 1/2'--48', 21.3mm-61219mm or customized. |
| Thickness |
SCH5S, SCH10S, SCH20S,SCH20, SCH30,STD, SCH40, SCH60, SCH80, SCH100, SCH140, SCH160,XS, (1.65mm-80mm), or customized. |
| Length | 5.8m 6m Fixed, 12m Fixed, 2-12m Random. |
| Technic | 1/2'--6': hot piercing processing technic, 6'--48' : hot extrusion processing technic |
| Surface Treatment | Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation. |
| End |
Bevel end(>2"), Plain (≤2"),with plastic cap, with screwed and socket. |
| Usage / Application |
Oil pipe line, Drill pipe, Hydraulic pipe, Gas pipe, Fluid pipe, Boiler pipe,Conduit pipe, Scaffolding pipe pharmaceutical and ship building etc. |
Manufacture:
(hot-finished or cold-drawn)
| Material | Chemical Composition(%) | |||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V | |
| Grade A | ≤0.25 | 0.27-0.93 | ≤0.035 | ≤0.035 | ≥0.10 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.08 |
| Material | Mechanical Properties | |||||||||
| Tensile Strength(MPa) | Yield Strength(MPa) | |||||||||
| Grade A | 330 | 205 | ||||||||
Dimension Tolerances of Cold drwan pipe
| Pipe Sizes | Tolerances | |||||||||
| OD | ≤48.3mm | ±0.40mm | ||||||||
| ≥60.3mm | ±1%mm | |||||||||
| WT | ±12.5% | |||||||||
Tensile Test — NPS 8 and larger — either transverse or longitudinal acceptable Smaller than NPS 8 — weighed in lots.
Larger sizes — by length.
Flattening Test — NPS 2-1/2 and larger.
Bending Test (Cold) — NPS 2 and under.
Shipping--- by container (Apply to a few or common quantity) or in bulk ( Apply to huge quantity)
Container sizes:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
For 20feet container load 25tons-28tons pipes whose max. length is 5.8m.
For40feet container load 25tons-26tons pipes whose max. length is 12m.
