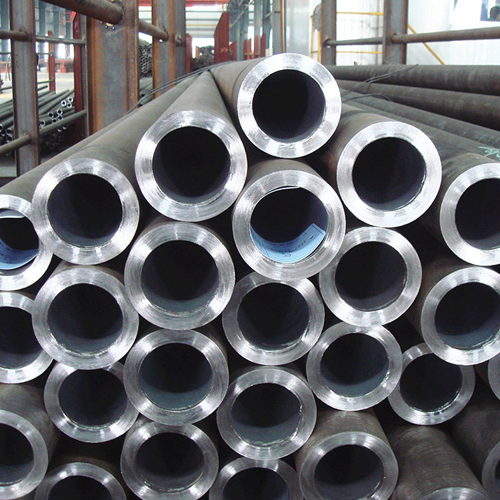

ASTM Specification A106 covers seamless carbon steel nominal wall pipe for high-temperature service, suitable for bending, flanging and similar forming operations. NPS 1-1/2 and under may be either hot finished or cold drawn. NPS 2 and larger shall be hot finished unless otherwise specified.
| Name | Seamless Carbon steel pipe |
| Material | A53(A.B) A106 (A.B).0345,16Mn,10#,20#,45#,S235JR,S355JR,Q320,Q360,Q410,Q460,Q490,ASTM A252,Gr.2,Gr.3,ST37,ST42,ST52,GrB,X42,X46,X52,X5,X6,X65,X70,30CrMo.Etc |
| Wall Thickness | 2.11-59.54mm |
| Outer Diameter | 13.7-1219.2mm |
| Size | 6×1 18×5 32×7-8 48×9-10 70×4-5 83×4-5 102×25-26 127×30-32 6×2 20×1-1.5 32×9-10 48×12-14 70×6-7 83×6-7 102×28-30 127×34-35 7×1 20×2-2.5 34×2-3 51×3-3.5 70×8-9 83×8-10 102×32 133×4-4.5 7×2 20×3-3.5 34×4-5 51×4-6 70×10-12 83×12-14 108×4-4.5 133×5-6.... Can choose |
| Length | Length: Single random length/Double random length 5m-14m, 5.8m, 6m, 10m-12m, 12m or according to customer's actual requirements |
| Standard | API 5L,ASTM A53-2007,ASTM A671-2006,ASTM A252-1998,ASTM A450-1996,ASME B36.10M-2004,ASTM A523-1996,BS 1387,BS EN10296,BS ANSI B36.1 6323,BS 6363,BS EN10219,GB/T 3091-2001,GB/T 13793-1992,GB/T9711 |
| Grade | 10#-45#,16Mn,A53-A369,Q195-Q345,ST35-ST52,Grade A,Grade B Grade C |
| Technique | Hot/Cold Seamless steel pipe |
| Section Shape | Square,Rectangular,Round |
| Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends,cut quare, grooved,threaded and couplings, etc |
| Surface Treatment | 1.Galvanized,bare 2.PVC,Black and color painting 3.Transparent oil,anti-rust oil 4.According to clients requirement |
ASTM A106 is a specification for seamless carbon steel pipe for high-temperature service. It has a maximum carbon content of 0.30% and a maximum manganese content of 1.20%, making it a low-carbon steel with good strength and toughness. This material is suitable for use in high-temperature and high-pressure applications, such as power generation, chemical processing, and petroleum refining. Additionally, it has excellent corrosion resistance and can be used in outdoor environments without requiring additional protection.
The normal use cases for ASTM A106 include transportation of fluids and gases, as well as structural applications in the construction industry. It is also commonly used in the manufacturing of boilers, heat exchangers, and pressure vessels. Its strength, toughness, and corrosion resistance make it a popular choice for a wide range of applications that require durability and reliability in high-temperature environments.
At FastMetals.com, ASTM A106 is available in black galvanized steel pipe. The black steel pipe is available in sizes ranging from 1/2 inch to 3 inches in diameter. The galvanized steel pipe is available in lengths from 1 foot to 8 feet and can be custom cut to length. Both types of steel pipe are available in standard and extra-heavy wall thicknesses to accommodate different application requirements.
The standard covers pipe sizes in NPS (National Standard Straight) from 1/8 inch to 48 inches (10.3mm DN6 – 1219mm DN1200). It also complies with the nominal wall thickness specified in ASME B 36.10M. For sizes that are not covered by ASME B 36.10M, this standard specification can still be used.
The materials used for the ASTM A106 standard specification should be suitable for bending, flanging, or similar forming processes. If the steel material is to be welded, the welding process should be appropriate for this grade of ASTM A106 and suitable for high-temperature working environments.
In cases where a superior or higher grade of ASTM A106 steel pipe is required, the standard provides an optional specification for supplementary requirements. Additionally, these supplementary specifications require additional testing to be conducted when placing an order for pipes that adhere to this standard.
References ASTM standards:
a. ASTM A530/ A530M: This is the standard specification for the common requirements of carbon and alloy pipes.
b. E213: The standard for the Ultrasonic Examination test.
c. E309: The standard for the Eddy Current examination test.
d. E381: The standard for the plan of Macroetch test, for steel products such as steel bars, steel billets, blooms, and forging steels.
e. E570: The standard for the test plan for the flux leakage test of ferromagnetic steel pipes and pipeline products.
f. Related ASME Standard:
g. ASME B 36.10M: The standard specification for nominal sizes of welded and seamless steel pipes.
h. Related Military standard:
i. MIL-STD-129: The standard for the markings of shipment and storage.
j. MIL-STD-163: The standard for the storage and shipment of steel forging products.
k. Related federal standard:
l. Fed. Std. No. 123: The standard for the marking and shipments for civil agencies.
m. Fed. Std. No. 183: The standard specification for continuous ID marking for steel products.
n. Surface standard:
o. SSPC-SP 6: The standard specification for surface preparation.
The ASTM A106 standard specifications for seamless steel pipes consist of three grades: ASTM A106 Gr. A, Gr. B, and Gr. C. With higher-grade materials, the strength performance is improved.
The test methods for ASTM A106 grades A, B, and C include flattening tests, hydrostatic tests, nondestructive electric tests, ultrasonic tests, eddy current tests, and flux leakage tests. These test procedures should be communicated and confirmed with the client to determine which specific tests will be applied.
Octal supplys ASTM A106 Grade A, Grade B, and Grade C seamless carbon steel pipes under the following conditions:
Standard: ASTM A106, Nace, Sour service.
Grade: A, B, C
Range of OD outer diameter: NPS 1/8 inch to NPS 20 inch, 10.13mm to 1219mm
Range of WT wall thickness: SCH 10, SCH 20, SCH STD, SCH 40, SCH 80, to SCH160, SCHXX; 1.24mm up to 1 inch, 25.4mm
Range of length: 20ft to 40ft, 5.8m to 13m, single random lengths of 16 to 22ft, 4.8 to 6.7m, double random length with average 35ft 10.7m
Ends procession: Plain end, beveled, threaded
Coating: Black paint, varnished, epoxy coating, polyethylene coating, FBE and 3PE, CRA Clad and Lined.
