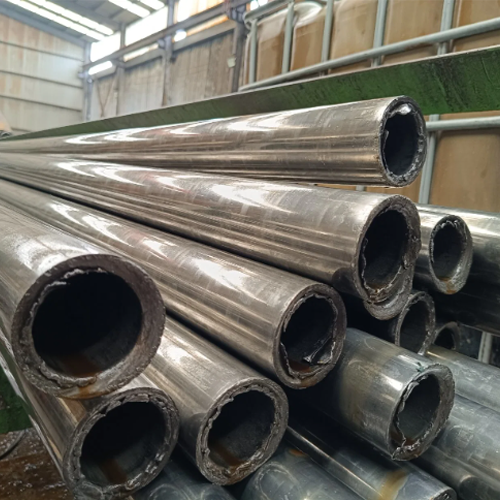

Name: ASTM A210 Grade A1 Seamless Medium Carbon Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00134
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

ASTM A210 Grade A1 Seamless Medium Carbon Steel Pipe

Product Description

SA210A1 is a Seamless medium carbon steel Boiler Tube used in super heater, heat exchangers, condensers, marine application, refineries, paper pulping, petrochemical applications, pressure vessels, and general engineering applications.

It is also used in coal, thermal and oil power generation plants.

SA210A1 steel can be purchased HF (hot finished) or CD (cold drawn) and shall be killed. SA213T2 has a maximum hardness of 85 HRB (Rockwell B) and is a P1 Material.

Chemical Requirements

Tensile Requirements for ASTM A210 Grade A1 Seamless Tubes

Grade	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elongation (%)
A1	≥ 415	≥ 255	≥ 30
C	≥ 485	≥ 275	≥ 30

Material comparison tables for ASTM A210 Grade A1 Seamless Tubes

ASME SA-210	OD	WT	WT Tolerance
	<=38.1	/	+20%,-0%
	>38.1	/	+20%,-0%

Chemical Requirements for ASTM A210 Grade A1 Seamless Tubes

Grade	C(Max)	Mn	Si(Min)	P(Max)	S(Max)
A1	0.27	Max.0.93	0.1	0.035	0.035
C	0.35	0.29~1.06	0.1	0.035	0.035

Product Parameters

ASTM A210 GR A1 Seamless Carbon Steel Tube Supplier

A210 Grade A1 Seamless Tubes Specification	ASTM A210 / ASME SA210
A210 Grade A1 Seamless Tubes Grades	ASTM A210 Grade A1 / ASME SA210 Grade A1 /ASTM A210 Grade C / ASME SA210 Grade C
A210 Grade A1 Seamless Tubes Type	Seamless - Hot Rolled / Cold Drawn
A210 Grade A1 Seamless Tubes Outer Diameter Size	1/4" NB to 2" NB (Nominal Bore Size)
A210 Grade A1 Seamless Tubes Wall Thickness	1 mm Thickness to 8 mm Thickness
A210 Grade A1 Seamless Tubes Length	5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on. Max length: 27000mm, also U bending can be offered.
A210 Grade A1 Seamless Tubes Ends	Plain Ends / Beveled Ends / Coupling
A210 Grade A1 Seamless Tubes Delivery Conditions	As Rolled, Cold Drawn, Normalizing Rolled
A210 Grade A1 Seamless Tubes Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
A210 Grade A1 Seamless Tubes Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
A210 Grade A1 Seamless Tubes Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
A210 Grade A1 Seamless Tubes Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
A210 Grade A1 Seamless Tubes Packaging	Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
A210 Grade A1 Seamless Tubes Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
A210 Grade A1 Seamless Tubes Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

ASTM A210 Grade A1 Seamless Medium Carbon Steel Pipe
