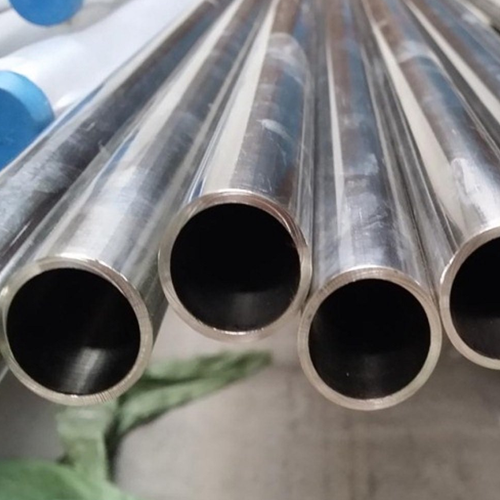

Name: ASTM A213 Alloy Steel Seamless Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00136
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

ASTM A213 Alloy Steel Seamless Pipe

Product Description

Steel Boiler Pipe is a type of seamless steel pipe that is specifically designed to withstand high pressure and temperatures in boiler and heat exchanger applications. It is made from high-quality carbon steel or alloy steel and is often used in power plants, refineries, and other industrial settings. Steel Boiler Pipe is available in various grades and sizes, and can be customized to meet the specific needs of different applications. With its superior strength, durability, and resistance to corrosion, Steel Boiler Pipe is a reliable and cost-effective solution for demanding industrial environments.

Product Parameters

ASTM A213 seamless pipes tubes Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes. Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. The tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished. Heat treatment shall be done separately and in addition to heating for hot forming. The ferritic alloy and ferritic stainless steels shall be reheated. On the other hand, austenitic stainless steel tubes shall be furnished in the heat-treated condition. Alternatively, immediately after hot forming, while the temperature of the tubes is not less than the minimum solution temperature, tubes may be individually quenched in water or rapidly cooled by other means. Tension test, hardness test, flattening test, and flaring test shall be done to each tube. Also, each tube shall be subjected to the nondestructive electric test or hydrostatic test.

Product Name	ASTM A213 Alloy Steel Seamless Pipe
Material	Mo Steel, Cr-Mo Steel, Cr- Mo-W Steel
industry	Baosteel
Standard	ASME SA-106, ASME SA-192M. ASME SA-209M. ASME SA-210M.ASTM A 106M. ASTE A192M.EN 10216-2. DIN 17175, JIS G 3456. JIS G 3461. JIS G 3462
Grade	SA-106B, SA-192. SA-210A1, SA-106C, SA-210C. SA-209T1. SA-213 T11.
Uses	For manufacture wall panel, economizer, reheater,superheater and steam pipeline of boilers

Steel Grade:	106B,210A1,210C,P9,P11,T1,T11,T2,T5,T12,T22,T23,T91,T92,P235GH,13CrMo4-5,15Mo3,10CrMo9-10, ST35.8,ST45.8,STB340,STBA 12-2,API5L,5CT 304,304L,309S,310S,316,316L,317,317L,321,347,347H,304N,316L, 316N,201,202,S32205,S31803
Standard:	ASME/ASTM SA/A53/513/106/209/210/213/335/178/179/519 ASME/ASTM SA/A213,A312,A269,A778,A789, DIN 17456, DIN17457,DIN 17459,DIN17175,EN10216,BS3605,BS3059 JIS G3458,JISG3459,JIS G3461,JIS G3462,JIS G3463
Specification:	Outdiameter 10~508mm
Wt:	1.0-30mm,or according to customer's special request
Length:	2-20meters,or according to customer's special request
Package:	Export Standard Package
Typies of tube:	Boiler tube,precision tube,mechanical tubing,cylinder tube,line pipes,etc
Mill MTC:	Supplied before shipment
Inspection:	The Third Party inspection can be accepted,SGS,BV,TUV
Mount port:	Any port in China
Trade Term:	FOB,CIF,CFR,EXW,etc.
Price Term:	TT or LC at sight
Our services:	We can customized according to customer's requriement or drawing ,packaging according to customers' request

ASTM A179/(ASME SA179)
Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes
Application:	For tubular heat exchangers,condensers,and similar heat transfer apparatus.
Size(mm):	O.D.:6.0~114.0 W.T.:1~15 L:max 12000

Grade and Chemical Composition (%)

Chemical Composition	C	Mn	P≤	S≤	Si≤
Chemical Composition	0.06-0.18	0.27-0.63	0.035	0.035	0.25

Tolerance(SA-450/SA-450M):

OD In (mm)	+	-	WT In(mm)	+	-
<1(25.4)	0.10	0.10	≤1.1/2(38.1)	20%	0
1~1.1/2(25.4~38.1)	0.15	0.15	>1.1/2(38.1)	22%	0
>1.1/2~<2(38.1~50.8)	0.20	0.20
2~<2.1/2(50.8~63.5)	0.25	0.25
2.1/2~<3(63.5~76.2)	0.30	0.30
3~4(76.2~101.6)	0.38	0.38
>4~7.1/2(101.6~190.5)	0.38	0.64
>7.1/2~9(190.5~228.6)	0.38	1.14

ASTM A192/A192M-02
Seamless Carbon Steel Bolier Tubes for High-Pressure
Application:	For seamless carbon steel bolier and superheater tubes for high-pressure service
Size(mm):	O.D.:6.0~114.0 W.T.:1~15 L:max 12000

Grade and Chemical Composition (%)

Chemical Composition	C	Mn	P≤	S≤	Si≤
Chemical Composition	0.06-0.18	0.27-0.63	0.035	0.035	0.25

Tolerance(SA-450/SA-450M):

OD In (mm)	+	-	WT In(mm)	+	-
<1(25.4)	0.10	0.10	≤1.1/2(38.1)	20%	0
1~1.1/2(25.4~38.1)	0.15	0.15	>1.1/2(38.1)	22%	0
>1.1/2~<2(38.1~50.8)	0.20	0.20
2~<2.1/2(50.8~63.5)	0.25	0.25
2.1/2~<3(63.5~76.2)	0.30	0.30
3~4(76.2~101.6)	0.38	0.38
>4~7.1/2(101.6~190.5)	0.38	0.64
>7.1/2~9(190.5~228.6)	0.38	1.14
