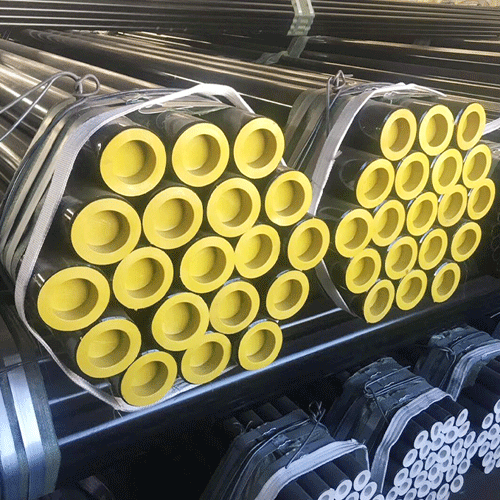

Name: ASTM A53 A106 ANSI 4140 4145 Seamless Carbon Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00181
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

ASTM A53 A106 ANSI 4140 4145 Seamless Carbon Steel Pipe

Product Description

　　The raw material of the carbon steel pipe is a round tube blank, and the round tube embryo is cut by the cutting machine and the growth of the blank is about 1 meter, and is sent to the furnace by the conveyor belt for heating. The billets are heated in a furnace at a temperature of about 1200 degrees Celsius. The fuel is hydrogen or acetylene. The temperature control in the furnace is the key problem. After the round tube billet is released, it must be perforated by the pressure piercing machine. Generally, the most common piercing machine is the conical roll piercing machine, which has high production efficiency, good product quality, large perforating and expanding diameter, and can wear a variety of steel. After the perforation, the round tube blank is successively rolled by three roller skew, continuous rolling or extrusion. After extrusion, the tube should be removed for sizing. The sizing machine rotates into the steel embryo at high speed through the conical drill to punch holes and form the steel pipe. The inner diameter of the steel pipe is determined by the outer diameter length of the caliper drill bit. After the steel pipe is calibrated, it enters the cooling tower and is cooled by water spray. After the steel pipe is cooled, it will be straightened. After the steel pipe is straightened, it is sent to the metal inspection machine (or hydraulic test) for internal inspection. If there are cracks, bubbles and other problems inside the steel pipe, it will be detected. After the steel pipe inspection, it is also strictly selected by hand. After the steel pipe quality inspection, paint the number, specification, production batch number, etc. And hoisted by crane into the warehouse.

Why you choose us?

1) HIGH QUALITY---We can guarantee for YOU!!

2) LOW PRICE--We can try the best to give YOU!!

3) 24 HOURS ONLINE SERVICE--We never stop serving YOU!!

4) SMALL ORDER IS ACCEPTABLE--YOU are warmly welcomed to contact us!!

Standard	High quality 20cr 30cr 40cr 4130 5140 41cr4 30CrMo alloy steel pipe for cutting use AP175-79, DIN2I5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179/A192/A213/A210 /370 WP91, WP11,WP22. DIN17440, DIN2448,JISG3452-54.
Material	API5L,Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53Gr.A&B,ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2,SY/T5037, SY/T5040 STP410,STP42.
Certificates	API5L ISO 9001:2008 TUV SGS BV etc
Outside Diameter	1/2'--24'
Outside Diameter	21.3mm-609.6mm
Thickness	SCH5S, SCH10S, SCH20S,SCH20, SCH30,STD, SCH40, SCH60, SCH80, SCH100, SCH140, SCH160,XS,
Thickness	1.65mm-59.54mm
Length	5.8m 6m Fixed, 12m Fixed, 2-12m Random.
Technic	1/2'--6': hot piercing processing technic
Technic	6'--24' : hot extrusion processing technic
Surface Treatment	Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation .
Packing	Bundles or In bulk. bundled pipes with two slings at the both end for easy loading and discharging,
End	Bevel end(>2"), Plain (≤2"),with plastic cap, with screwed and socket.
Usage /Application	Oil pipe line, Drill pipe, Hydraulic pipe, Gas pipe, Fluid pipe, Boiler pipe,Conduit pipe, Scaffolding pipe pharmaceutical and ship building etc.

Our company has cooperative relation between the domestic agents. Alloy pipe can be made according to the customers requirements.
Contacts If you have any questions, please feel free to contact me.

Grade	C	Si	Mn	P	S	Cr	Mo
P5	Max.0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	4-6	0.45-0.65
P11	0.05-0.15	0.5-1.0	0.3-0.6	Max.0.025	Max.0.025	1.0-1.5	0.44-0.65
P12	0.05-0.15	Max.0.50	0.3-0.61	Max.0.025	Max.0.025	0.8-1.25	0.44-0.65
P22	0.05-0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	1.9-2.6	0.87-1.13

Mechanical properties

Grade	Yield point (Mpa)	Tensile strength (Mpa)	Elongation(%)	Impact value(J)
P5	≥205	≥415	See table	≥35
P11	≥205	≥415	See table	≥35
P12	≥220	≥415	See table	≥35
P22	≥205	≥415	See table	≥35
