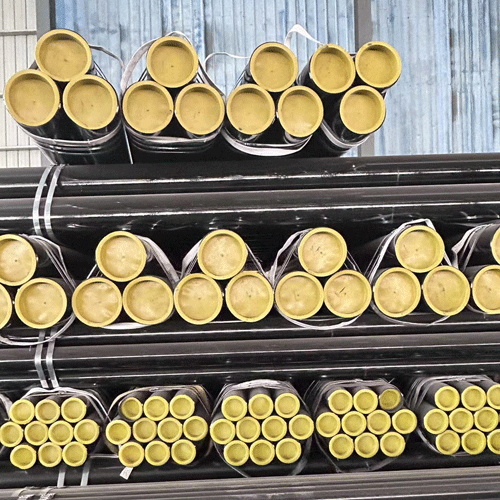

Name: ASTM AISI ISO Hot Cold Rolled 201 202 304 316 410 420 430 Seamless Steel Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00197
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

ASTM AISI ISO Hot Cold Rolled 201 202 304 316 410 420 430 Seamless Steel Pipe

Product Description

　　Seamless pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.

　　1. Steel tubing is a hollow steel shape intended for structural purposes and made from carbon, stainless, or galvanized steel further divided as:

　　· Mechanical Tubing is used in low stress applications such as fences, kitchens, restaurants, hospitals, solar panels and made with wall thicknesses up to 10 gauge.

　　· Structural Tubing is for high stress structural application like bridges, buildings, roll cages, and underwater platforms with wall thickness from 3/16" and up. It is often referred to as Hollow Structural Sections or just the acronym HSS.

　　2. Pipe is a hollow structure that is intended to carry material such as liquids, gasses, or even solids. Its wall thickness is described by its Schedule and it is often broken down by type using the method of manufacturing it, either ERW or Seamless.

　　Seamless pipe (and tubing) is made by extruding a steel block or by drilling a solid steel bar. Next, the extrusion or the drilled steel bar is cold drawn through a dye to achieve the diameter and thickness needed. Because this process can cause mechanical hardening, sometimes the material is annealed and straightened as a final process. Seamless Pipe & Tubing is subdivided as:

　　Cold Drawn Seamless, or CDS, exhibits precise tolerances and a good surface finish.

　　Hot Finished Seamless, or HFS, has less critical tolerances and somewhat scaly finish and is not as strong as CDS.

Standard	API, ASTM, BS, DIN, GB, JIS
Outer Diameter	21.3mm-660mm
Wall Thickness	0.5mm-20mm
Dia Tolerance	Control with in the standard, OD:±1%, WT:±10%
Materials	10#, 20#, 45#, Q235, Q345, Q195, ASTM A53/ A106/ A178/ A333/ A335, SAE1018, SAE1020, SAE1045, ST37, ST37-2, ST35, ST45, ST52, ST35.8, 19Mn5, 16Mn, SS400, Q345B, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo
Zinc coating	Pre galvanized steel pipe: 60-150g/m² Hot dipped galvanized steel pipe: 200-400g/m²
Type of pipe coating	Epoxy powder
Inspection	ISO, BV, SGS, MTC
Packing	Steel strip packed. Standard Export Seaworthy Package. Suit forall kinds of transport, or as required
Application	Accessorize, machinery parts, structure steel pipe, piling pipe, sewage and clear water transportation, Line pipe for petroleum and so on
MOQ	5metric ton,sample order accepted
Shipment time	Within 7-10 workdays after receiving deposit or L/C
Market	Southeast Asia, Middle East, Africa, Europe, South American and so on

ASTM A106 Seamless Carbon Steel Pipe
ASTM A106/ASME SA106 is the standard specification for seamless carbon steel pipe applied for high temperature services. It includes three grades A, B and C, and common use grade is A106 Grade B. It used in different industries not only for pipeline systems like oil and gas, water, mineral slurry transmission, but also for boiler, construction, structural purposes.
ASTM A106 Grade B pipe is equivalent to ASTM A53 Grade B and API 5L B on chemical position and mechanical properties, in general use carbon steel and yiled strength minimum 240 MPa, tensile strength 415 Mpa.

Description
1. Standards: ASTM A106 (ASME SA106)
2. Products mainly used: apply to bending, curling and similar forming process.
3. The main products of steel / steel grade: Gr.A, Gr.B, Gr.C.
4. Specifications: diameter: 10.3 to 114.3 mm thickness: 0.8 to 12 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe.
5. Chemical composition and mechanical properties
6. JIS Number and Corrensponding Foreign Standards

Chemical Composition And Mechanical Properties

Grade	Chemical Compositions
Grade	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
A106-A	≤0.25	0.27-0.93	≤0.035	≤0.035	≥0.10	≤0.40	≤0.40	≤0.15	≤0.40	≤0.08
A106-B	≤0.30	0.29-1.06	≤0.035	≤0.035	≥0.10	≤0.40	≤0.40	≤0.15	≤0.40	≤0.08
A106-C	≤0.35	0.29-1.06	≤0.035	≤0.035	≥0.10	≤0.40	≤0.40	≤0.15	≤0.40	≤0.08
Grade	Mechanical Properties
Grade	Tensile Strength(Mpa)			Yield Strength(Mpa)			Elongation(%)
A106-A	≥330			≥205			30
A106-B	≥415			≥240			30
A106-C	≥485			≥275			30

ASTM A53 Carbon Steel Pipe & Tube
ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

ASTM A53 seamless steel pipe chemical composition:

Grade	Chemical Composition (%) Max.
Grade	C	Mn	P	S	Cu	Ni	Cr	Mo	V
A	0.25	0.95	0.05	0.045	0.40	0.40	0.40	0.15	0.08
B	0.30	1.20	0.05	0.045	0.40	0.40	0.40	0.15	0.08

ASTM A53 seamless steel pipe Mechanical Properties:

Grade	Mechanical Properties
Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)
A	≥48,000 (≥330)	≥30,000 (≥205)
B	≥60,000 (≥415)	≥35,000 (≥240)

API 5L line pipe (Seamless and welded pipe) of all grades have PSL1 and PSL2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.
PSL is the short name of product standard level. The product standard level of line pipe have PSL1 and PSL2, also we could say the quality standard divided in PSL1 and PSL2. PSL2 is higher than PSL1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or PSL2.
PSL2 is more strictly than PSL1 on the chemical properties, tensile strength, non-destructive test, and impact test.
API 5L PSL1 steel line pipe not required to do the impact test.
For API 5L PSL2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0ºC. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.
For API 5L Grade X80 PSL2 line pipe, at 0ºC for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.
For API 5L PSL2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For PSL1 not required Non-destructive test, for PSL2 shall do the Non-destructive test for each single pipe.
Chemical composition and mechanical strength is also different between API 5L PSL1 line pipe and API 5L PSL2 line pipe. For the detailed specification as below. API 5L PSL2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in PSL2 tensile strength have maximum limits.

API 5L PSL 1 / PSL 2 Chemical Composition:

Standard	Product specification category	Steel Grade	Chemical Composite
Standard	Product specification category	Steel Grade	C	Mn	P	S	Si	V	Nb	Ti	CEpcm
API 5L	PSL 1	L210 or A	≤0.22	≤0.90	≤0.030	≤0.030					≤0.25
		L245 or B	≤0.28	≤1.20	≤0.030	≤0.030					≤0.25
		L290 or X42	≤0.28	≤1.30	≤0.030	≤0.030					≤0.25
		L320 or X46	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L360 or X52	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L390 or X56	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L415 or X60	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
	PSL 2	L245R or BR	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290R or X42R	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L245N or BN	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290N or X42N	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L320N or X46N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.40	≤0.07	≤0.05	≤0.04	≤0.25
		L360N or X52N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L390N or X56N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L415N or X60N	≤0.24	≤1,40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	Negotiate

API 5L PSL 1 / PSL 2 Mechanical Properties:

Standard	Product specification category	Steel Grade	Yield Strength	Tensile Strength
API 5L	PSL 1	L210 or A	210	335
		L245 or B	245	415
		L290 or x42	290	415
		L320 or X46	320	435
		L360 or X52	360	460
		L390 or X56	390	490
		L415 or X60	415	520
	PSL 2	L245R or BR	245~450	415~760
		L290R or X42R	290~495	415~760
		L245N or BN	245~450	415~760
		L290N or X42N	290~495	415~760
		L320N or X46N	320~525	435~760
		L360N or X52N	360~530	460~760
		L390N or X56N	390~545	490~760
		L415N or X60N	415~565	520~760

Steel pipe nominal outer diameter range	Steel pipe outer diameter	Coating category	Coating	Coating thickness
DN100~600	114.3~609.6	3PE (three-layer polyethylene)	First layer: epoxy powder (green)	2.0~4.5mm
			Intermediate layer: adhesive (white)
			Outermost layer: polyethylene (black)
		2PE (two layers of polyethylene)	First layer: adhesive	2.0~4.5mm
			Outermost layer: polyethylene
DN80~600	88.9~609.6	Epoxy powder	Epoxy powder	200~400um
		2FBE (Double layer epoxy powder)	First layer: epoxy powder (green)	400~800um
			Outermost layer: reinforced epoxy powder (gray green)
DN100~600	114.3~609.6	3PP (three layers of polypropylene)	First layer: epoxy powder (green)	2.5~3mm
			Intermediate layer: adhesive (white)
			Outermost layer: polypropylene (white)

Application Scope

Carbon steel pipe and tube are used in high-pressure conditions. They are highly resistant to shock and vibration, making it ideal to transport fluids. Carbon steel pipes are widely used in a number of industries, such as construction material, buidlings, bridges, transporting water and sewage, oil and gas industries, boiler and condenser tubes, high-pressure applications, and chemical processing.
- Construction material / bridges
- Transporting water and sewage
- Oil and gas industries
- Boiler and condenser tubes
- High-pressure applications
- Chemical processing

Packaging And Transportation

　　1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.

　　2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

　　3) Trade terms: FOB/CIF/CFR

　　4) Shipping port: Qingdao/Tianjin/Shanghai

　　5) Shipment: A: Length: ≤6m, loaded in 20GP Container.

　　B: Length: ≤12m, loaded in 40GP Container.

　　Remark: Size of 20GP Container (inside :5898*2352*2393mm);

　　Size of 40GP Container (inside:12032*2352*2393mm);

　　Size of 40HQ Container (inside:12032*2352*2698mm).

　　6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size: 15-30days custom made for you.
