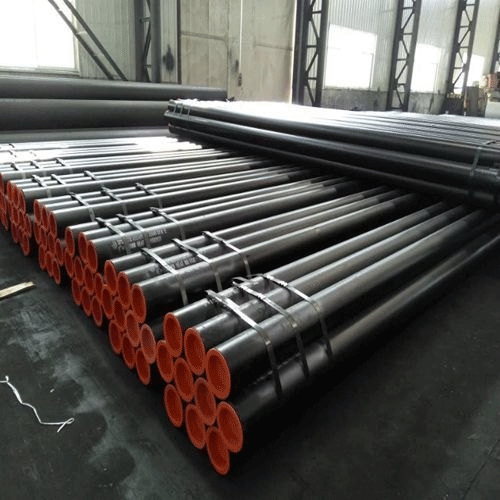

Name: ASTM API 5L Q235 A53 Carbon Steel Seamless Pipe
Brand: Hebei shengtian pipe-fitting group Co., ltd.
SKU: 00179
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

ASTM API 5L Q235 A53 Carbon Steel Seamless Pipe

Product Description

Why you choose us?

　　1) HIGH QUALITY---We can guarantee for YOU!!

　　2) LOW PRICE--We can try the best to give YOU!!

　　3) 24 HOURS ONLINE SERVICE--We never stop serving YOU!!

　　4) SMALL ORDER IS ACCEPTABLE--YOU are warmly welcomed to contact us!!

　　PRODUCT INFORMATION

　　Carbon Seamless Steel Pipe / tubes

　　Seamless steel pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.

　　Hot rolled seamless steel pipe deformation process can be summarized as three stages: extension, perforation and finishing. Hot rolled seamless steel pipes is relative to the cold-rolled, cold rolling is below the recrystallization temperature of the rolling and hot rolled is carried out at above the recrystallization temperature of the rolling. Hot rolled seamless steel pipe can damage the refinement of the crystal grains of the steel, cast microstructure of the steel ingot and eliminate the defects of the microstructure so that the the steel organization compacting, improves the mechanical properties. This improvement is reflected in the rolling direction so that the steel is no longer at a certain extent isotropic; pouring the formation of bubbles, cracks and osteoporosis, under high pressure and temperature can also be welded together.

　　Hot Rolled Steel Pipes (Seamless Tube) in different size, specifications, grades & thickness as per the client's requirements. The range offered by tubes is available as per the international & national standard and can be available from us at affordable prices. These pipes are used in various application industry like shipbuilding, power plants, oil and gas, automotive, sugar mills and distilleries, cement and construction industries et

item	astm a106 gr.b sae 1020 seamless carbon steel pipe seamless tube with price per meter for chemical / transport
Standard	BS EN10296, GB 5310-1995, ASTM A106-2006, BS EN10025, BS EN 10297
Thickness	2mm - 200mm
Section Shape	Round

Place of Origin	API
Application	Structure Pipe
Technique	Hot Rolled
Certification	API
Surface Treatment	galvanized
Special Pipe	API Pipe
Alloy Or Not	Non-Alloy
Tolerance	±3%
Type	Seamless Steel Pipe
Processing Service	Bending, Welding, Decoiling, Punching, Cutting

ASTM A53 Carbon Steel Pipe & Tube

ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

ASTM A53 seamless steel pipe chemical composition:

Grade	Chemical Composition (%) Max.
Grade	C	Mn	P	S	Cu	Ni	Cr	Mo	V
A	0.25	0.95	0.05	0.045	0.40	0.40	0.40	0.15	0.08
B	0.30	1.20	0.05	0.045	0.40	0.40	0.40	0.15	0.08

ASTM A53 seamless steel pipe mechanical properties:

Grade	Mechanical Properties
Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)
A	≥48,000 (≥330)	≥30,000 (≥205)
B	≥60,000 (≥415)	≥35,000 (≥240)

API 5L line pipe (Seamless and welded pipe) of all grades have P.S.L.1 and P.S.L.2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.
P.S.L is the short name of product standard level. The product standard level of line pipe have P.S.L.1 and P.S.L.2, also we could say the quality standard divided in P.S.L.1 and P.S.L2. P.S.L2 is higher than P.S.L.1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or P.S..L2.
P.S.L.2 is more strictly than P.S.L1 on the chemical properties, tensile strength, non-destructive test, and impact test.
API 5L P.S.L.1 steel line pipe not required to do the impact test.
For API 5L P.S.L.2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0ºC. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.
For API 5L Grade X80 P.S.L.2 line pipe, at 0ºC for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.
For API 5L P.S.L.2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For P.S.L1 not required Non-destructive test, for P.S.L.2 shall do the Non-destructive test for each single pipe.
Chemical composition and mechanical strength is also different between API 5L P.S.L.1 line pipe and API 5L P.S..L2 line pipe. For the detailed specification as below. API 5L P.S.L.2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in P.S.L2 tensile strength have maximum limits.

API 5L P.S.L .1 / P.S.L .2 Chemical Composition:

Standard	Product specification category	Steel Grade	Chemical Composite
Standard	Product specification category	Steel Grade	C	Mn	P	S	Si	V	Nb	Ti	CEpcm
API 5L	P.S.L. 1	L210 or A	≤0.22	≤0.90	≤0.030	≤0.030					≤0.25
		L245 or B	≤0.28	≤1.20	≤0.030	≤0.030					≤0.25
		L290 or X42	≤0.28	≤1.30	≤0.030	≤0.030					≤0.25
		L320 or X46	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L360 or X52	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L390 or X56	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L415 or X60	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
	P.S.L. 2	L245R or BR	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290R or X42R	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L245N or BN	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290N or X42N	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L320N or X46N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.40	≤0.07	≤0.05	≤0.04	≤0.25
		L360N or X52N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L390N or X56N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L415N or X60N	≤0.24	≤1,40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	Negotiate
