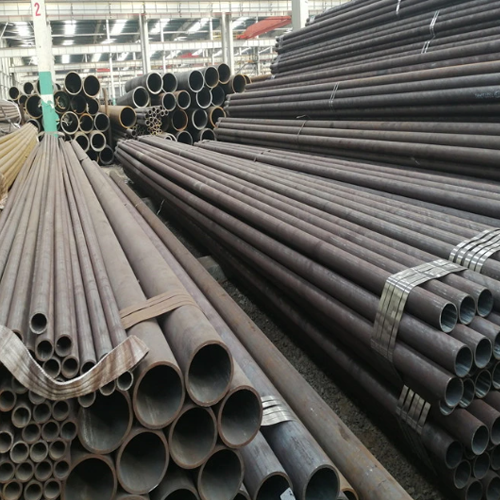

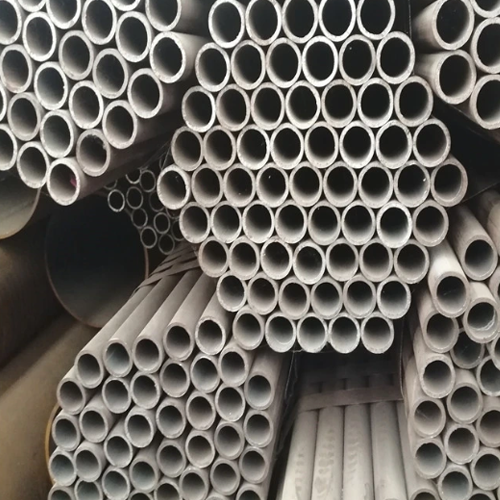

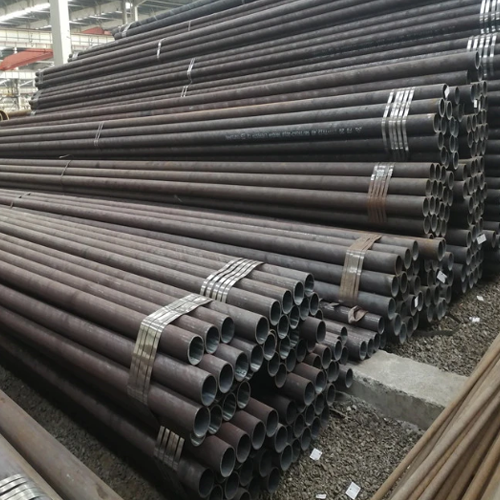

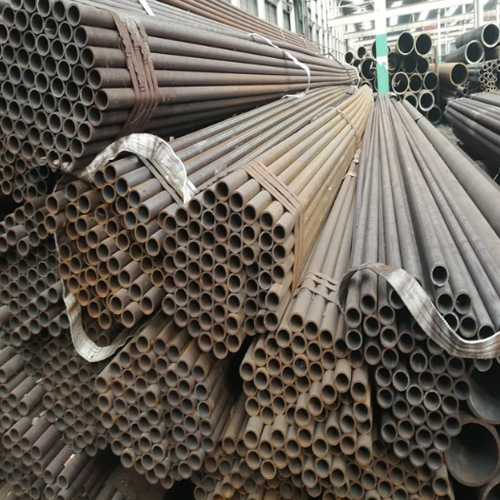

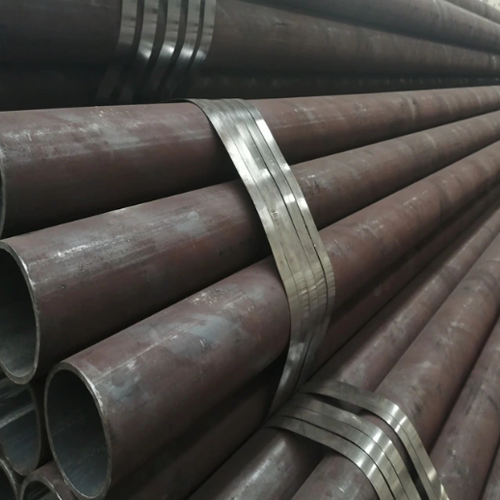

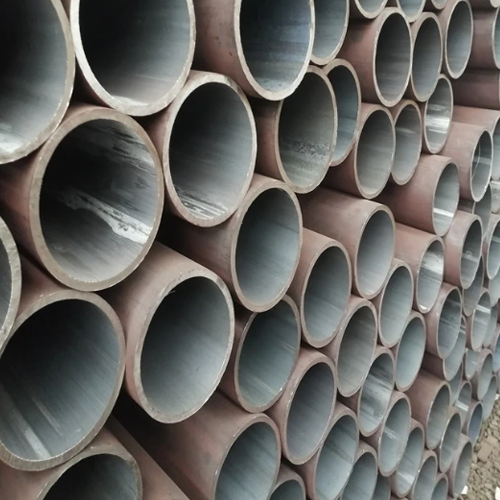

| Product | P235GH high pressure carbon seamless steel pipe |
| Standard | EN10216 |
| Material | P195TR2 |
| Surface | Black paint, varnish, oil, galvanized |
| Pipe Length | 5.8 m to 12 m, can be customized according to the length requirements |
| Pipe Ends | Plain Ends, Beveled Ends |
| End Protector | 1. Plastic caps (small OD) 2. Iron protector (large OD) |
| Application | Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes |
| Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size |
| Productivity | 50000 tons per month |
| Min Order | 20 ton |
| Remark | Special design available according to requirement |
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
| max 0.16 | max 0.35 | 0.6 - 1.2 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.02 | max 0.012 | max 0.02 | max 0.03 | max 0.02 | max 0.3 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) (+N) | 360-480 | 350-480 | 340-480 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
| ReH - Minimum yield strength (MPa) (+N) | 235 | 225 | 215 | 200 | 185 | 170 |
| KV - Impact energy (J) transverse, (+N) | -20° 27 |
0° 27 |
+20° 40 |
| KV - Impact energy (J) longitud., | -10° 28 |
0° 40 |
+20° 47 |
| A - Min. elongation at fracture (%) (+N) | 24-25 |
